AD5114 - Single-Channel Nonvolatile Digital Potentiometer

Download the AD5114 datasheet PDF. This datasheet also covers the AD5110 variant, as both devices belong to the same single-channel nonvolatile digital potentiometer family and are provided as variant models within a single manufacturer datasheet.

General Description

The AD5110/AD5112/AD5114 provide a nonvolatile solution for 128-/64-/32-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the A, B, and W pins.

Key Features

  • Nominal resistor tolerance error: ±8% maximum Wiper current: ±6 mA Rheostat mode temperature coefficient: 35 ppm/°C Low power consumption: 2.5 µA max @ 2.7 V and 125°C Wide bandwidth: 4 MHz (5 kΩ option) Power-on EEPROM refresh time < 50 μs 50-year typical data retention at 125°C 1 million write cycles 2.3 V to 5.5 V analog supply operation 1.8 V to 5.5 V logic supply operation Wide operating temperature:.
  • 40°C to +125°C Thin, 2 mm × 2 mm × 0.55 mm 8-lead LFCSP package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AD5110_AnalogDevices.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AD5114
Manufacturer Analog Devices
File Size 532.13 KB
Description Single-Channel Nonvolatile Digital Potentiometer
Datasheet download datasheet AD5114 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AD51058C 15W Mono Class-D Audio Amplifier ESMT
AD513 HIGH SPEED FET-INPUT OP AMPS ETC
AD516 HIGH SPEED FET-INPUT OP AMPS ETC
AD51652 3W Mono Filter-less Class-D Audio Amplifier Elite Semiconductor
AD51653 4.2W Mono Class-K Audio Amplifier ESMT

Other Datasheets by Analog Devices

Part Number Description
AD5110 Single-Channel Nonvolatile Digital Potentiometer
AD5111 Single-Channel Nonvolatile Digital Potentiometer
AD5112 Single-Channel Nonvolatile Digital Potentiometer
AD5113 Single-Channel Nonvolatile Digital Potentiometer
AD5115 Single-Channel Nonvolatile Digital Potentiometer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

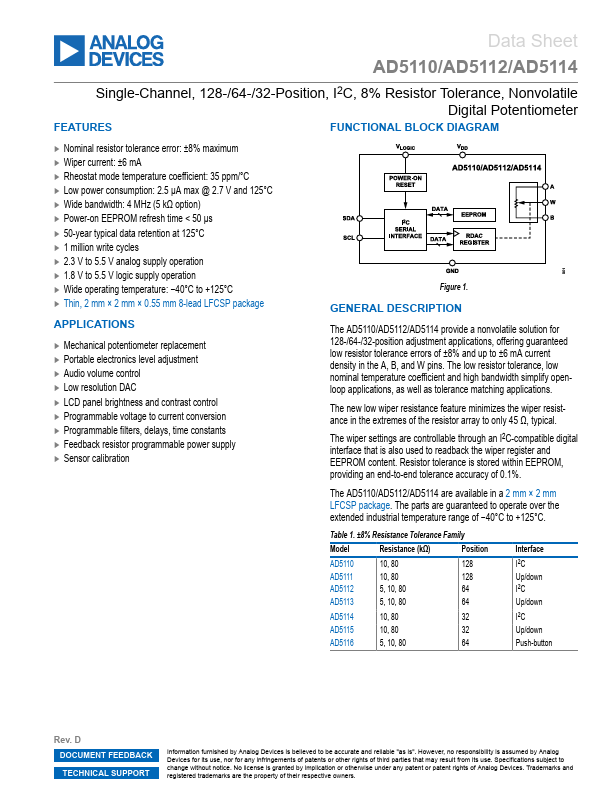

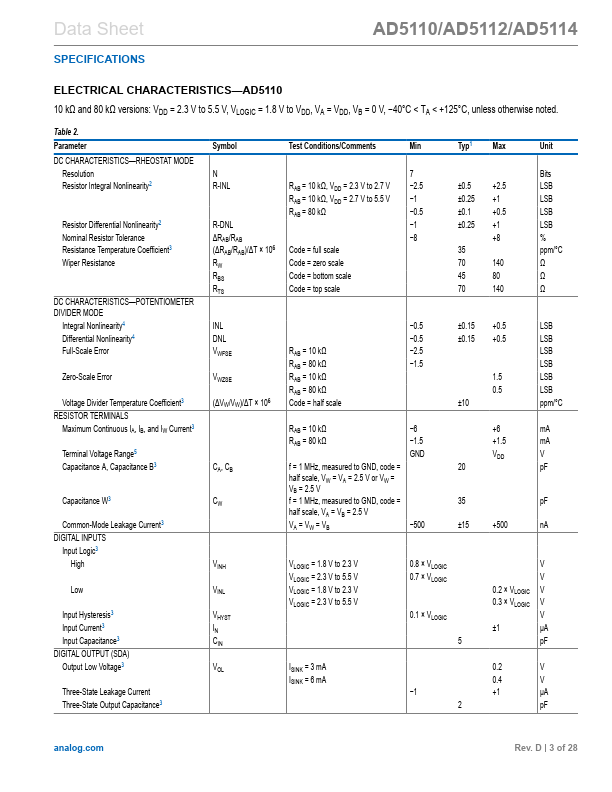

Data Sheet Single-Channel, 128-/64-/32-Position, I2C, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer AD5110/AD5112/AD5114 09582-001 FEATURES Nominal resistor tolerance error: ±8% maximum Wiper current: ±6 mA Rheostat mode temperature coefficient: 35 ppm/°C Low power consumption: 2.5 µA max @ 2.7 V and 125°C Wide bandwidth: 4 MHz (5 kΩ option) Power-on EEPROM refresh time < 50 μs 50-year typical data retention at 125°C 1 million write cycles 2.3 V to 5.5 V analog supply operation 1.8 V to 5.5 V logic supply operation Wide operating temperature: −40°C to +125°C Thin, 2 mm × 2 mm × 0.
