ADP163 Datasheet | Analog Devices

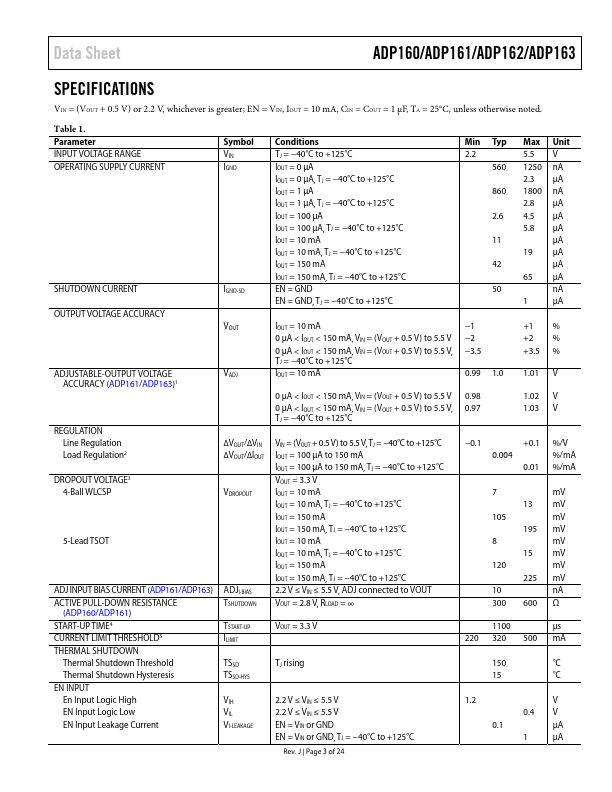

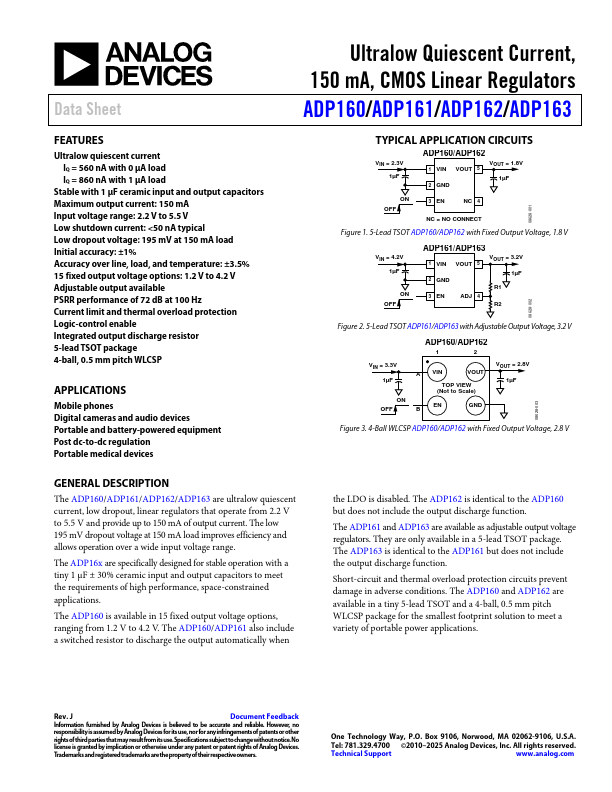

Data Sheet Features Ultralow quiescent current IQ = 560 nA with 0 µA load IQ = 860 nA with 1 µA load Stable with 1 µF ceramic input and output capacitors Maximum output current: 150 mA Input voltage range: 2.2 V to 5.5 V Low shutdown current: <50 nA typical Low dropout voltage: 195 mV at 150 mA load Initial accuracy: ±1% Accuracy over line, load, and temperature: ±3.5% 15 fixed output voltage options: 1.2 V to 4.2 V Adjustable output available PSRR performance of 72 dB at 100 Hz Current limit and thermal overload protection Logic-control enable Integrated output discharge resistor 5-lead TSOT package 4-ball, 0.5 mm pitch WLCSP APPLICATIONS Mobile phones Digital cameras and audio devices...
