BCT2160 - 300mA Ultra Low Noise and High PSRR LDO Regulators

Description

The BCT2160 series is a high PSRR Linear regulators capable of supplying 300mA output current.

Designed to meet the requirements of RF and analog circuits, the BCT2160 provides ultra low noise, high PSRR, low quiescent current and very good load/line transients.

Features

  • Operating Input Voltage Range: 1.8V to 5.5V.
  • Accuracy ±2%.
  • Ultra Low Quiescent Current: 14μA.
  • Shutdown Current: 0.1μA.
  • Low Dropout Voltage.
  • Output current limit:530mA.
  • Output short to GND Protection:220mA.
  • Over Temperature Protection:+160℃.
  • Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.2V, 5.0V.
  • Stable with a 1μF Small Case Size Ceramic Capacitor.
  • -40°C to 85°C Operating Temperature Range.
  • Available in Green SOT23-5 and.

📥 Download Datasheet

Datasheet Details

Part number BCT2160
Manufacturer BROADCHIP
File Size 574.70 KB
Description 300mA Ultra Low Noise and High PSRR LDO Regulators
Datasheet download datasheet BCT2160 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT2193 Low Power RF-Linear Regulators
BCT2014 0.7uA Low Power Linear Regulators
BCT2019 RF-Linear Regulators
BCT2021 70dB PSRR 300mA Fast Response Linear Regulators
BCT2028 500mA Linear Regulators

Full PDF Text Transcription

Click to expand full text

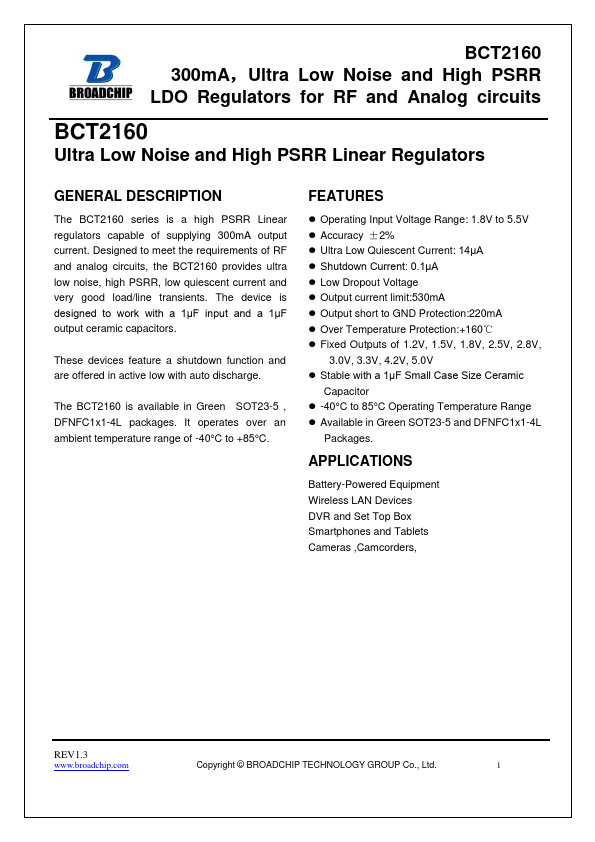

BCT2160 300mA，Ultra Low Noise and High PSRR LDO Regulators for RF and Analog circuits BCT2160 Ultra Low Noise and High PSRR Linear Regulators GENERAL DESCRIPTION The BCT2160 series is a high PSRR Linear regulators capable of supplying 300mA output current. Designed to meet the requirements of RF and analog circuits, the BCT2160 provides ultra low noise, high PSRR, low quiescent current and very good load/line transients. The device is designed to work with a 1μF input and a 1μF output ceramic capacitors. These devices feature a shutdown function and are offered in active low with auto discharge. The BCT2160 is available in Green SOT23-5 , DFNFC1x1-4L packages. It operates over an ambient temperature range of -40°C to +85°C. FEATURES  Operating Input Voltage Range: 1.8V to 5.
