BCT2203 - 150mA High Voltage Regulators

Description

The BCT2203 series low-power, high voltage, low-dropout, CMOS linear voltage regulators operate from a 2.7V to 36.0V input voltage with 2.5uA low power.

They are the perfect choice for high input voltage, low power applications.

Features

  • Low Power Consumption.
  • 150mA Nominal Output Current.
  • Current Limit 230mA.
  • Short Current Limit 40mA.
  • Low Dropout Voltage.
  • High Input Voltage(up to 36V).
  • Output Voltage Accuracy:±2%.
  • Fixed Outputs Voltage Versions: 1.5V,1.8V,3.0V,3.3V,4.2V 4.5V,5.0V,8.0V,9.0V,10V and 12V.
  • -40°C to 85°C Operating Temperature Range.
  • Available in Green SOT23-3, SOT23-5 and SOT89-3 Packages.

📥 Download Datasheet

Datasheet Details

Part number BCT2203
Manufacturer BROADCHIP
File Size 0.99 MB
Description 150mA High Voltage Regulators
Datasheet download datasheet BCT2203 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT2211 Low Power RF-Linear Regulators
BCT2232 Rail-to-Rail I/O Op Amps
BCT2014 0.7uA Low Power Linear Regulators
BCT2019 RF-Linear Regulators
BCT2021 70dB PSRR 300mA Fast Response Linear Regulators

Full PDF Text Transcription

Click to expand full text

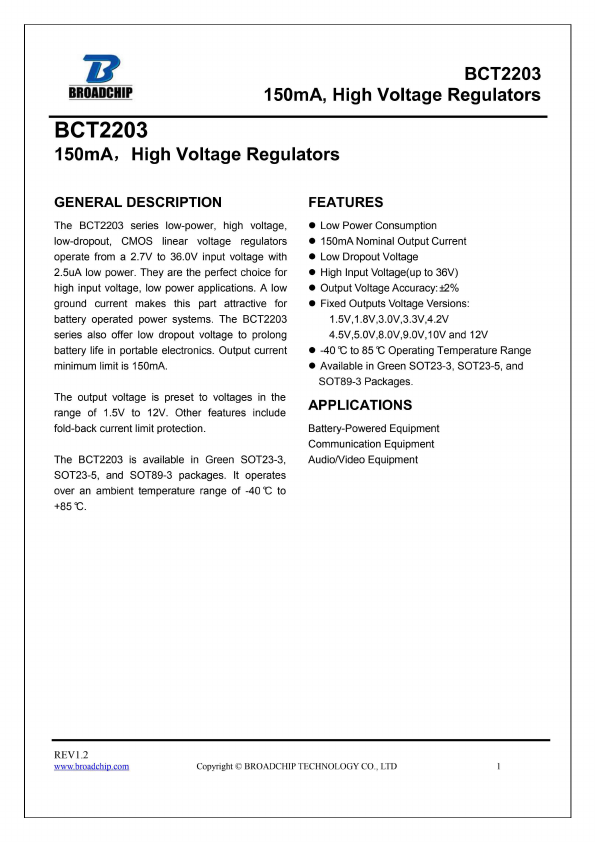

BCT2203 150mA, High Voltage Regulators BCT2203 150mA，High Voltage Regulators GENERAL DESCRIPTION The BCT2203 series low-power, high voltage, low-dropout, CMOS linear voltage regulators operate from a 2.7V to 36.0V input voltage with 2.5uA low power. They are the perfect choice for high input voltage, low power applications. A low ground current makes this part attractive for battery operated power systems. The BCT2203 series also offer low dropout voltage to prolong battery life in portable electronics. The output voltage is preset to voltages in the range of 1.5V to 12V. The BCT2203 is available in Green SOT23-3, SOT23-5 and SOT89-3 packages. It operates over an ambient temperature range of -40°C to +85°C.
