Datasheet Details
| Part number | BCT3364 |
|---|---|
| Manufacturer | BROADCHIP |
| File Size | 325.70 KB |
| Description | 4-Channel LED Driver |
| Download | BCT3364 Download (PDF) |
|
|
Overview: BCT3364 4 Channel LED Driver With Digital Pulse Brightness Control BCT3364 4 Channel LED Driver With Digital Pulse Brightness Control.
| Part number | BCT3364 |
|---|---|
| Manufacturer | BROADCHIP |
| File Size | 325.70 KB |
| Description | 4-Channel LED Driver |
| Download | BCT3364 Download (PDF) |
|
|
|

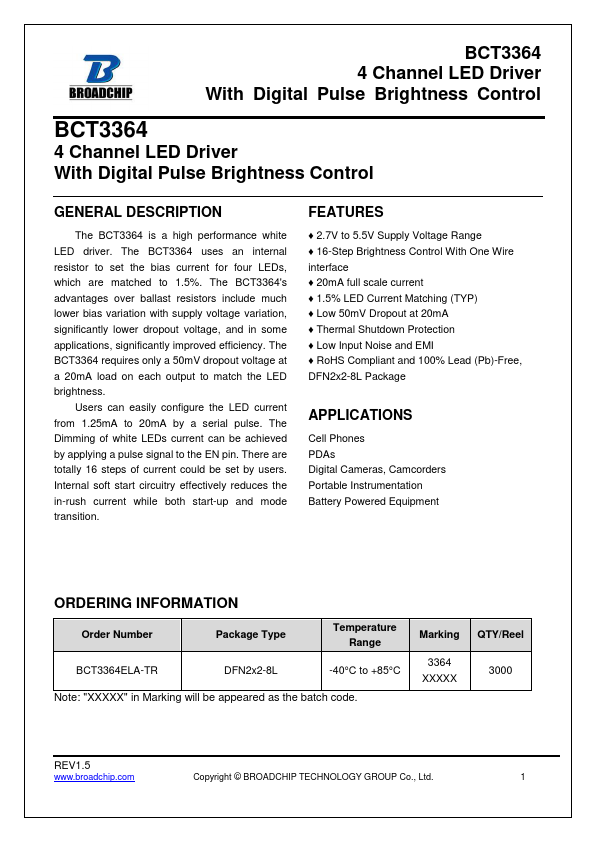

The BCT3364 is a high performance white LED driver.
The BCT3364 uses an internal resistor to set the bias current for four LEDs, which are matched to 1.5%.
The BCT3364's advantages over ballast resistors include much lower bias variation with supply voltage variation, significantly lower dropout voltage, and in some applications, significantly improved efficiency.
