BCT3401 - Backlight Driver

Description

The BCT3401 is a high efficiency synchronous DC-DC step-down converter designed to drive LED, using a constant frequency and current.

Features

  • provide protection against any combination of overload. The BCT3401 is available in a 5-pin SOT23-5 package, which provides a compact solution with minimal external components.

📥 Download Datasheet

Datasheet Details

Part number BCT3401
Manufacturer BROADCHIP
File Size 391.81 KB
Description Backlight Driver
Datasheet download datasheet BCT3401 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT3024 24-CHANNELS LED DRIVER
BCT3119 9-Channel 64steps Constant-Current LED Driver
BCT3142 1.1A Buck/Boost Charge Pump LED Driver
BCT3144 High Efficiency Synchronous Boost Converter
BCT3220 4-Channel Common-Anode LED Driver

Full PDF Text Transcription

Click to expand full text

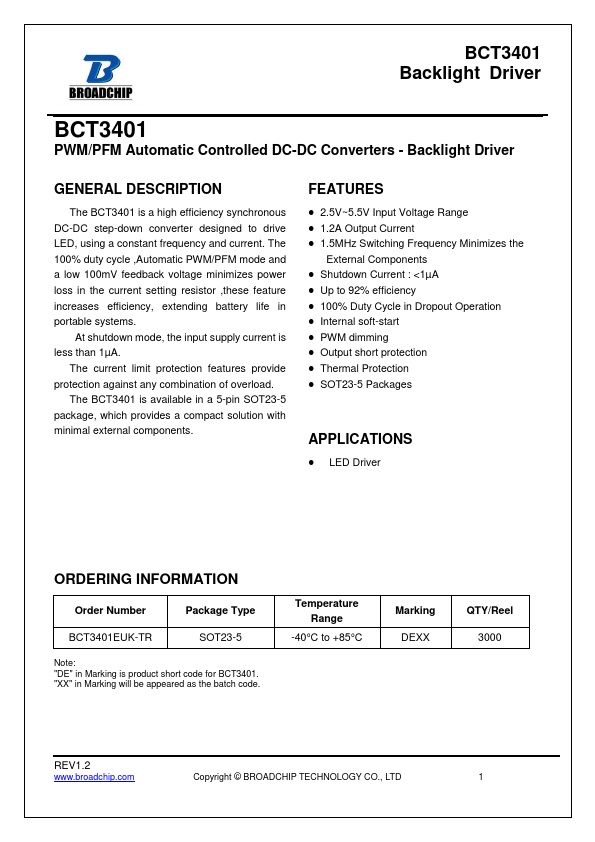

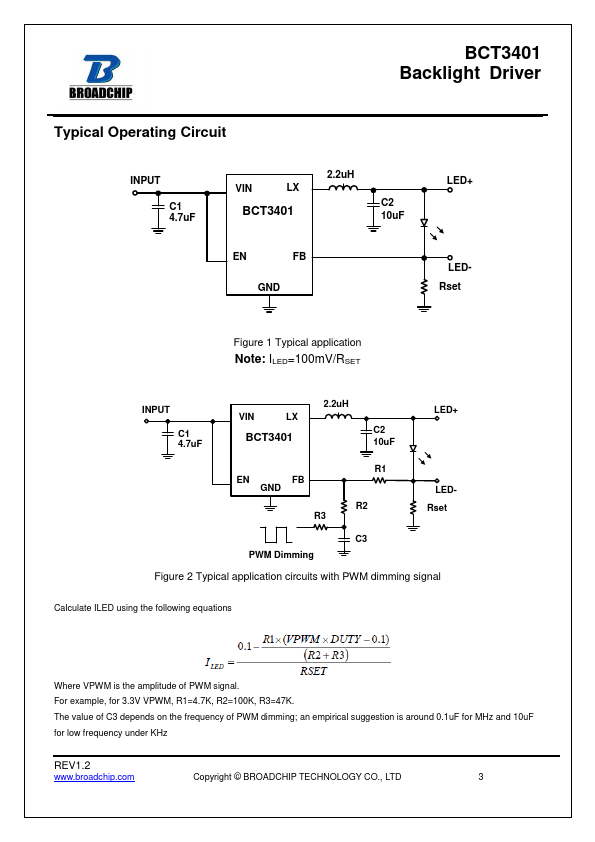

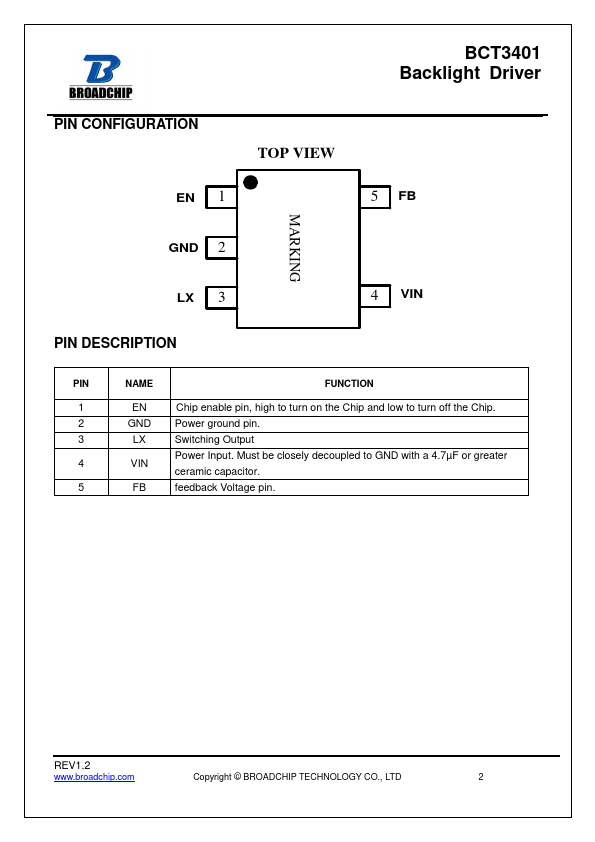

BCT3401 Backlight Driver BCT3401 PWM/PFM Automatic Controlled DC-DC Converters - Backlight Driver GENERAL DESCRIPTION The BCT3401 is a high efficiency synchronous DC-DC step-down converter designed to drive LED, using a constant frequency and current. The 100% duty cycle ,Automatic PWM/PFM mode and a low 100mV feedback voltage minimizes power loss in the current setting resistor ,these feature increases efficiency, extending battery life in portable systems. At shutdown mode, the input supply current is less than 1µA. The current limit protection features provide protection against any combination of overload. The BCT3401 is available in a 5-pin SOT23-5 package, which provides a compact solution with minimal external components. FEATURES  2.5V~5.5V Input Voltage Range  1.
