BCT8933 - High Power Class T Audio Amplifier

Description

The BCT8933 is a powerful Class-T audio amplifier.

Using our unique Digital Power Modulation (DPM) audio algorithm, effectively eliminate audio noise, increase signal Dynamic range which will greatly improve sound quality and volume.

Features

  • the DPM function, which adjusts the system gain and output power automatically, protects the speaker from damage at high power levels and brings the most comfortable listening experience to the customers. The BCT8933 is available in a small 3mm×3mm 20-Pin QFN Package. It is specified over the extended -40℃ to +85℃ temperature range.

📥 Download Datasheet

Datasheet Details

Part number BCT8933
Manufacturer BROADCHIP
File Size 383.76 KB
Description High Power Class T Audio Amplifier
Datasheet download datasheet BCT8933 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT89317A High Efficiency Low Noise Class T Audio Amplifier
BCT89318 High efficiency Class T Audio Amplifier
BCT89318A High efficiency Low noise Class T Audio Amplifier
BCT89318F High efficiency Low noise Class T Audio Amplifier
BCT8937A Low Noise Class T Audio Amplifier

Full PDF Text Transcription

Click to expand full text

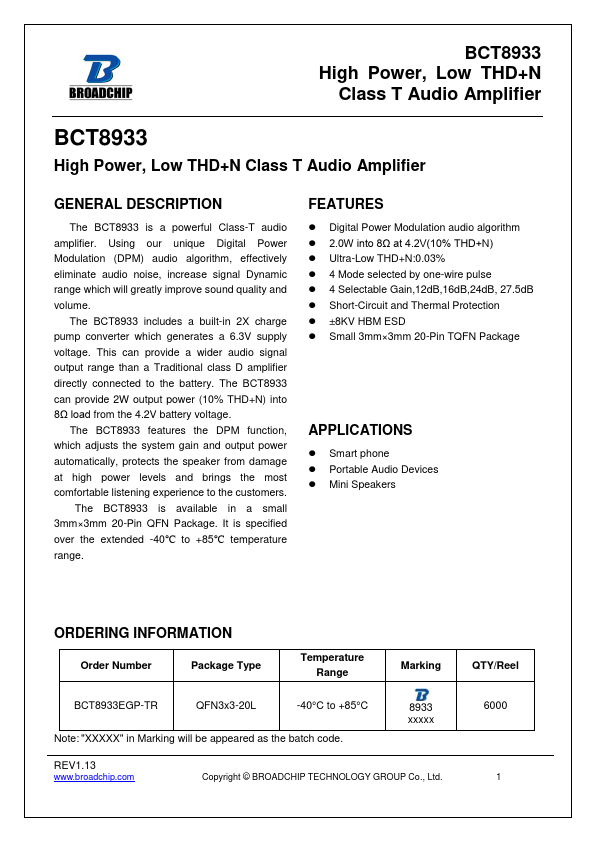

BCT8933 High Power, Low THD+N Class T Audio Amplifier BCT8933 High Power, Low THD+N Class T Audio Amplifier GENERAL DESCRIPTION The BCT8933 is a powerful Class-T audio amplifier. Using our unique Digital Power Modulation (DPM) audio algorithm, effectively eliminate audio noise, increase signal Dynamic range which will greatly improve sound quality and volume. The BCT8933 includes a built-in 2X charge pump converter which generates a 6.3V supply voltage. This can provide a wider audio signal output range than a Traditional class D amplifier directly connected to the battery. The BCT8933 can provide 2W output power (10% THD+N) into 8Ω load from the 4.2V battery voltage.
