BCT8937A - Low Noise Class T Audio Amplifier

Description

BCT8937A is specifically designed to enhance smart mobile phone sound quality, which is an innovative high efficiency, low noise, ultra-low distortion, constant large volume, Class T audio amplifier, using our unique Digital Power Modulation (DPM) audio algorithm, effectively eliminate audio noise,

Features

  • Power amplifier overall efficiency 80%.
  • Low noise：53μV.
  • Ultra-low distortion：0.08%.
  • Digital Power Modulation (DPM) technology.
  • Selectable speaker-guard power level： 0.6W,0.8W,1.0W,1.2W.
  • Within voltage range(3.3V~4.35V), output power is maintained constant.
  • One wire pulse control.
  • High PSRR：-68dB@217Hz.
  • Support 6ohm speaker.
  • Excellent pop-click suppression.
  • ESD protection：±6kV (HBM).
  • Small 0.4mm pitch FCQFN1.6x1.6-16L package.

📥 Download Datasheet

Datasheet Details

Part number BCT8937A
Manufacturer BROADCHIP
File Size 688.88 KB
Description Low Noise Class T Audio Amplifier
Datasheet download datasheet BCT8937A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT89317A High Efficiency Low Noise Class T Audio Amplifier
BCT89318 High efficiency Class T Audio Amplifier
BCT89318A High efficiency Low noise Class T Audio Amplifier
BCT89318F High efficiency Low noise Class T Audio Amplifier
BCT8933 High Power Class T Audio Amplifier

Full PDF Text Transcription

Click to expand full text

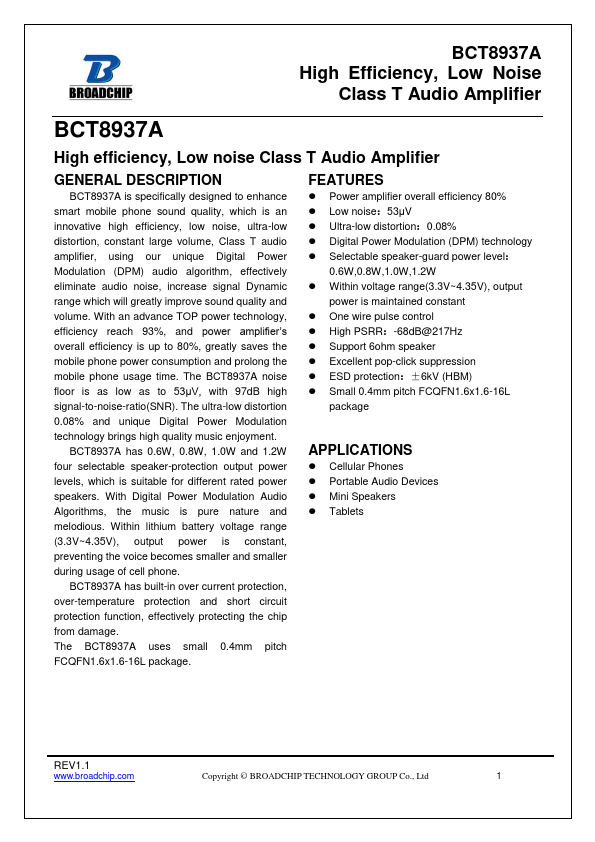

BCT8937A High Efficiency, Low Noise Class T Audio Amplifier BCT8937A High efficiency, Low noise Class T Audio Amplifier GENERAL DESCRIPTION BCT8937A is specifically designed to enhance smart mobile phone sound quality, which is an innovative high efficiency, low noise, ultra-low distortion, constant large volume, Class T audio amplifier, using our unique Digital Power Modulation (DPM) audio algorithm, effectively eliminate audio noise, increase signal Dynamic range which will greatly improve sound quality and volume. With an advance TOP power technology, efficiency reach 93%, and power amplifier’s overall efficiency is up to 80%, greatly saves the mobile phone power consumption and prolong the mobile phone usage time.
