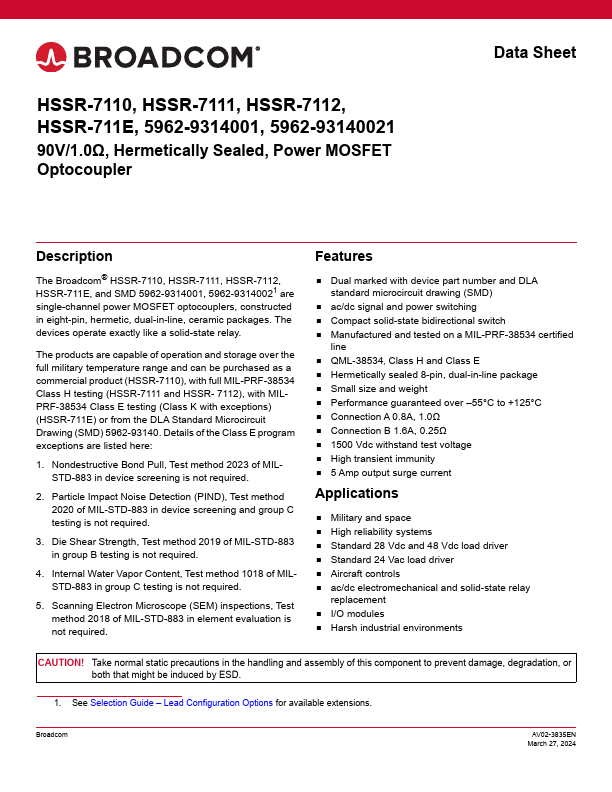

HSSR-7111 Datasheet Power MOSFET Optocoupler

Manufacturer: Broadcom

Overview: HSSR-7110, HSSR-7111, HSSR-7112, HSSR-711E, 5962-9314001, 5962-93140021 90V/1.

This datasheet includes multiple variants, all published together in a single manufacturer document.

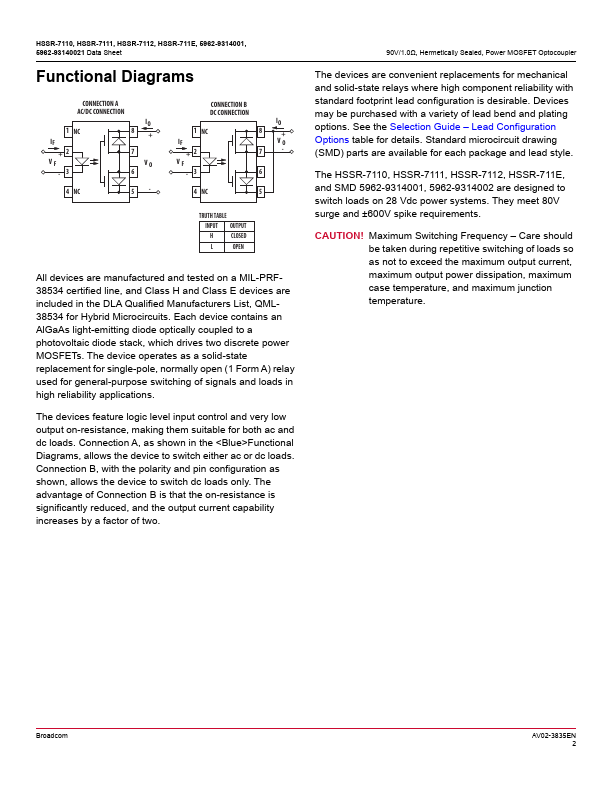

General Description

The Broad® HSSR-7110, HSSR-7111, HSSR-7112, HSSR-711E, and SMD 5962-9314001, 5962-93140021 are single-channel power MOSFET optocouplers, constructed in eight-pin, hermetic, dual-in-line, ceramic packages.

The devices operate exactly like a solid-state relay.

The products are capable of operation and storage over the full military temperature range and can be purchased as a mercial product (HSSR-7110), with full MIL-PRF-38534 Class H testing (HSSR-7111 and HSSR- 7112), with MILPRF-38534 Class E testing (Class K with exceptions) (HSSR-711E) or from the DLA Standard Microcircuit Drawing (SMD) 5962-93140.

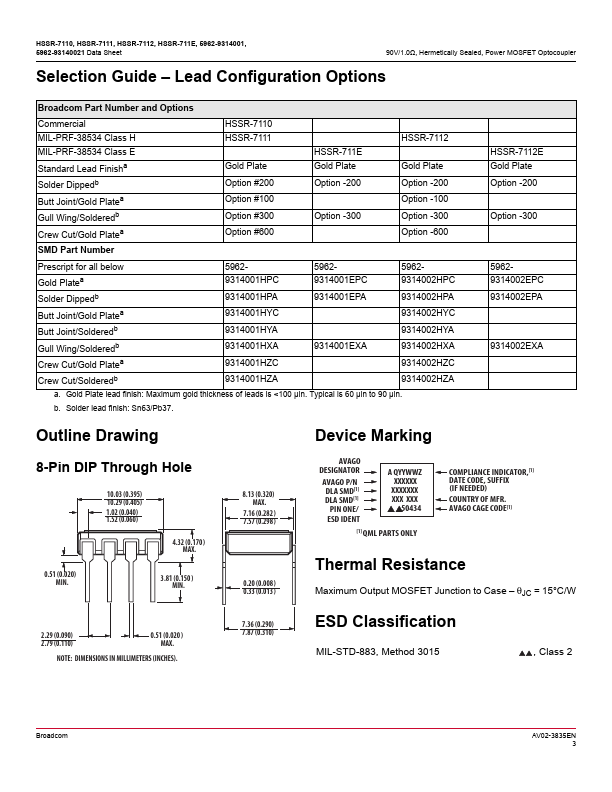

Key Features

  • Dual marked with device part number and DLA standard microcircuit drawing (SMD).
  • ac/dc signal and power switching.
  • Compact solid-state bidirectional switch.
  • Manufactured and tested on a MIL-PRF-38534 certified line.
  • QML-38534, Class H and Class E.
  • Hermetically sealed 8-pin, dual-in-line package.
  • Small size and weight.
  • Performance guaranteed over.
  • 55°C to +125°C.
  • Connection A 0.8A, 1.0Ω.
  • Connection B 1.6A, 0.25Ω.
  • 1500 Vdc withstand t.
