ESD5Z5V Key Features
- 12.0 V z Peak Power up to 200 Watts @ 8 x 20 µs
- Method 3015-7 Class 3 25 kV HBM (Human Body Model)

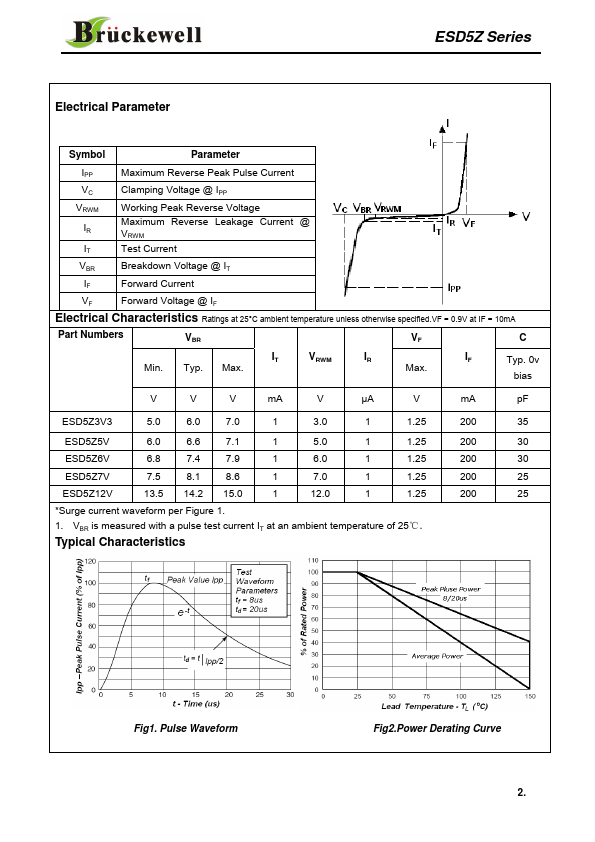

- Surge current waveform per Figure 1. 1. VBR is measured with a pulse test current IT at an ambient temperature of 25℃．
- Part: ESD5Z5V
- Manufacturer: Bruckewell Technology
- Size: 208.68 KB
Other ESD5Z5V Datasheets
| Manufacturer | Part Number | Description |
|---|---|---|
WillSEMI |
ESD5Z5V | Small Power TVS |
|
WillSEMI |
ESD5Z5V-2 | Transient Voltage Suppressors |
|
WillSEMI |
ESD5Z5VA | Low Junction Capacitance Transient Voltage Suppressors |
|
WillSEMI |
ESD5Z5VL | Small Power TVS |
|
WillSEMI |
ESD5Z5VU | Small Power TVS |

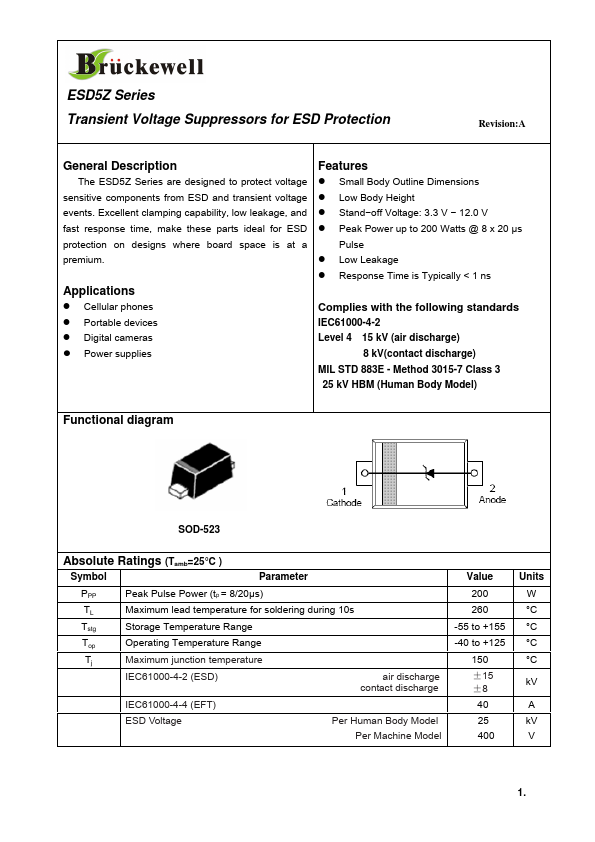

ESD5Z5V Description
The ESD5Z Series are designed to protect voltage sensitive ponents from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Applications z Cellular phones z Portable devices z Digital cameras z Power supplies.
