ESD5Z12V Overview
The ESD5Z Series are designed to protect voltage sensitive ponents from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Applications z Cellular phones z Portable devices z Digital cameras z Power supplies.
ESD5Z12V Key Features
- 12.0 V z Peak Power up to 200 Watts @ 8 x 20 µs
- Method 3015-7 Class 3 25 kV HBM (Human Body Model)

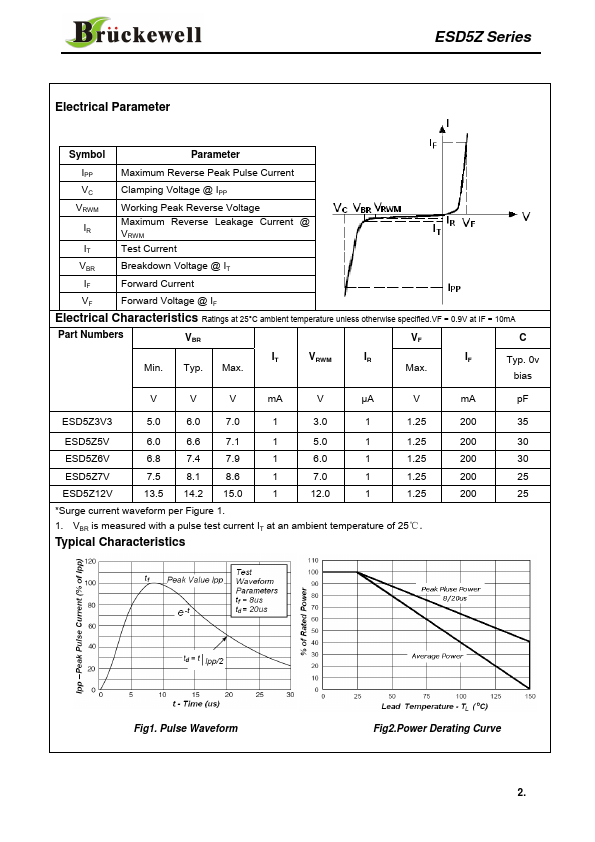

- Surge current waveform per Figure 1. 1. VBR is measured with a pulse test current IT at an ambient temperature of 25℃．
