DIR1701 Datasheet Digital Audio Interface Receiver

Manufacturer: Burr-Brown (Texas Instruments)

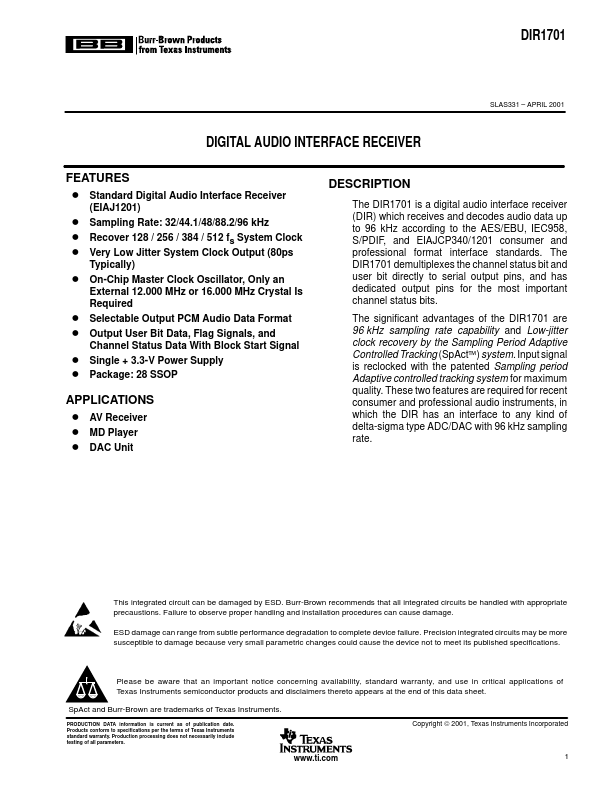

Overview: DIR1701 SLAS331 – APRIL 2001 DIGITAL AUDIO INTERFACE RECEIVER.

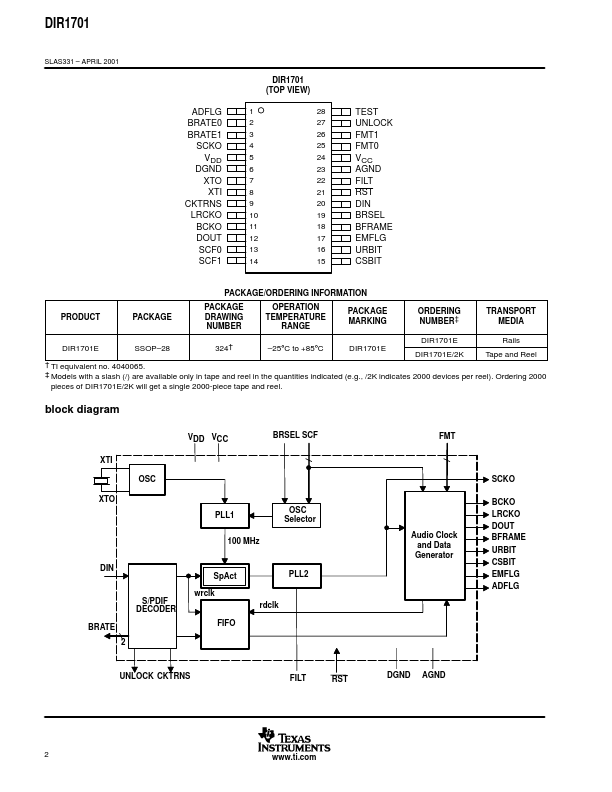

General Description

The DIR1701 is a digital audio interface receiver (DIR) which receives and decodes audio data up to 96 kHz according to the AES/EBU, IEC958, S/PDIF, and EIAJCP340/1201 consumer and professional format interface standards.

The DIR1701 demultiplexes the channel status bit and user bit directly to serial output pins, and has dedicated output pins for the most important channel status bits.

The significant advantages of the DIR1701 are 96 kHz sampling rate capability and Low-jitter clock recovery by the Sampling Period Adaptive Controlled Tracking (SpAct) system.

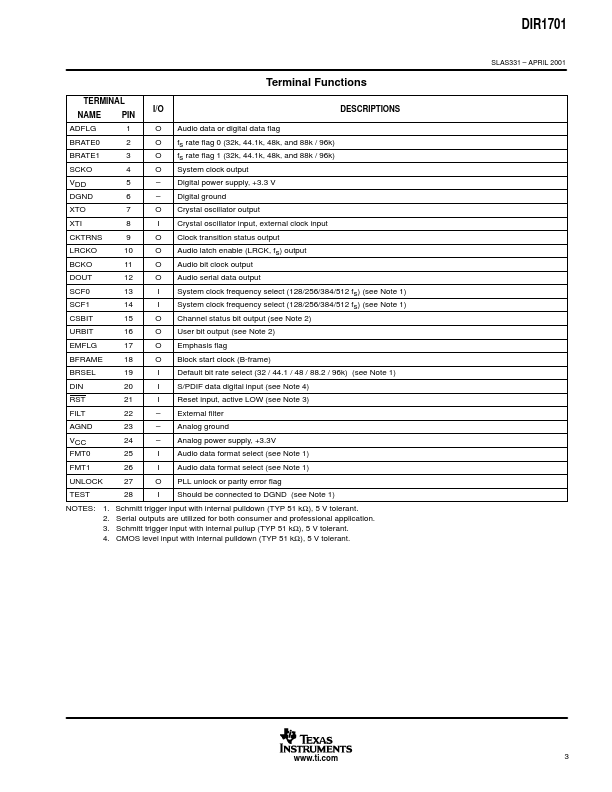

Key Features

  • D Standard Digital Audio Interface Receiver (EIAJ1201) D Sampling Rate: 32/44.1/48/88.2/96 kHz D Recover 128 / 256 / 384 / 512 fs System Clock D Very Low Jitter System Clock Output (80ps Typically) D On-Chip Master Clock Oscillator, Only an External 12.000 MHz or 16.000 MHz Crystal Is Required D Selectable Output PCM Audio Data Format D Output User Bit Data, Flag Signals, and Channel Status Data With Block Start Signal D Single + 3.3-V Power Supply D Package: 28 SSOP.
