DIR1703 Datasheet Digital Audio Interface Receiver

Manufacturer: Burr-Brown (Texas Instruments)

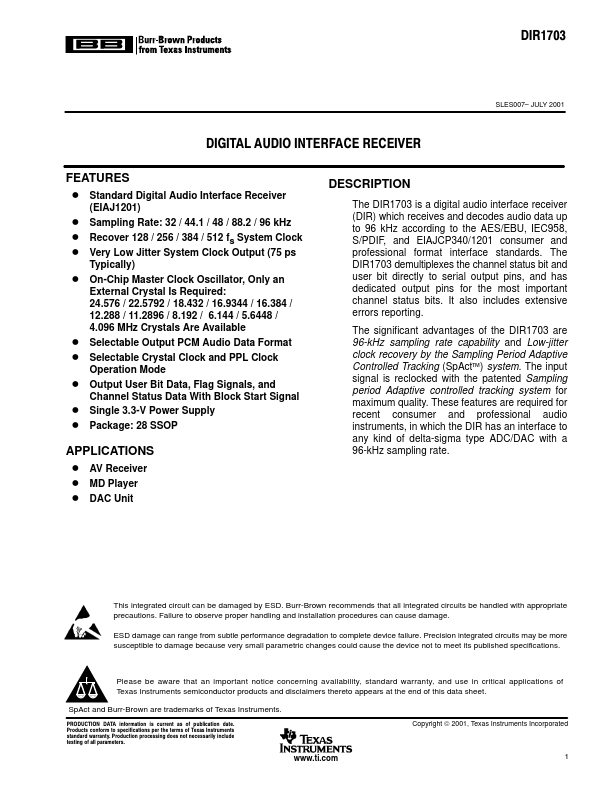

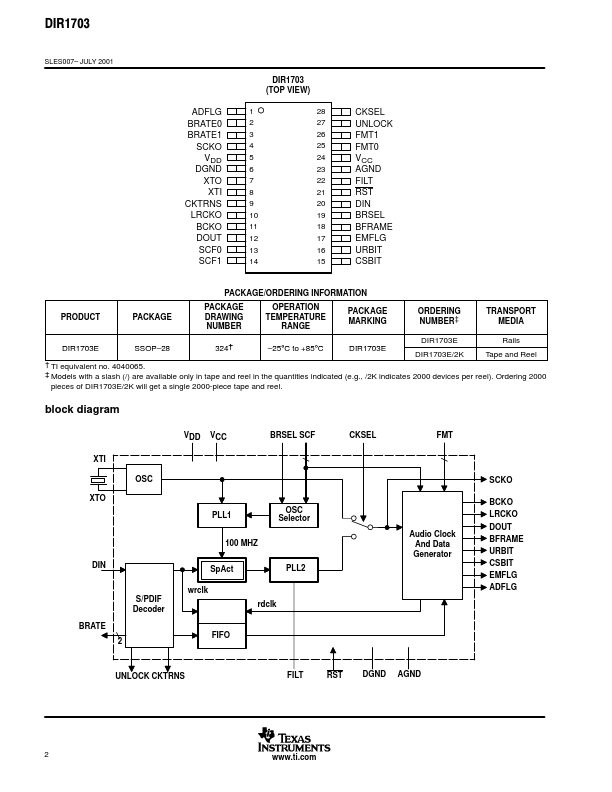

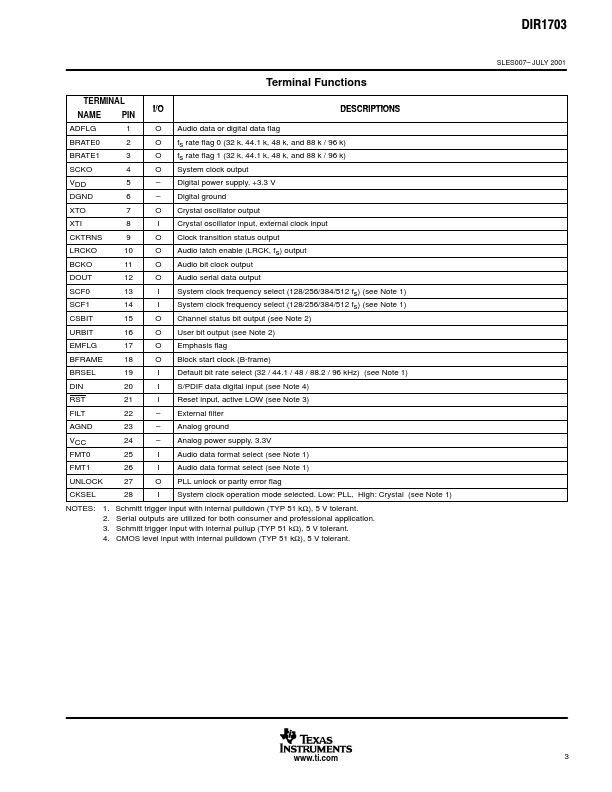

Overview: DIR1703 SLES007– JULY 2001 DIGITAL AUDIO INTERFACE RECEIVER.

General Description

The DIR1703 is a digital audio interface receiver (DIR) which receives and decodes audio data up to 96 kHz according to the AES/EBU, IEC958, S/PDIF, and EIAJCP340/1201 consumer and professional format interface standards.

The DIR1703 demultiplexes the channel status bit and user bit directly to serial output pins, and has dedicated output pins for the most important channel status bits.

It also includes extensive errors reporting.

Key Features

  • D Standard Digital Audio Interface Receiver (EIAJ1201) D Sampling Rate: 32 / 44.1 / 48 / 88.2 / 96 kHz D Recover 128 / 256 / 384 / 512 fs System Clock D Very Low Jitter System Clock Output (75 ps Typically) D On-Chip Master Clock Oscillator, Only an External Crystal Is Required: 24.576 / 22.5792 / 18.432 / 16.9344 / 16.384 / 12.288 / 11.2896 / 8.192 / 6.144 / 5.6448 / 4.096 MHz Crystals Are Available D Selectable Output PCM Audio Data Format D Selectable Crystal Clock and PPL Clock Operation Mod.
