PCM1600 - 24-Bit 6-Channel DIGITAL-TO-ANALOG CONVERTER

Description

The PCM1600(1) and PCM1601(1) are CMOS monolithic integrated circuits which feature six 24-bit audio digital-to-analog converters and support circuitry in either a LQFP-48 or MQFP-48 package.

Features

  • q 24-BIT.

📥 Download Datasheet

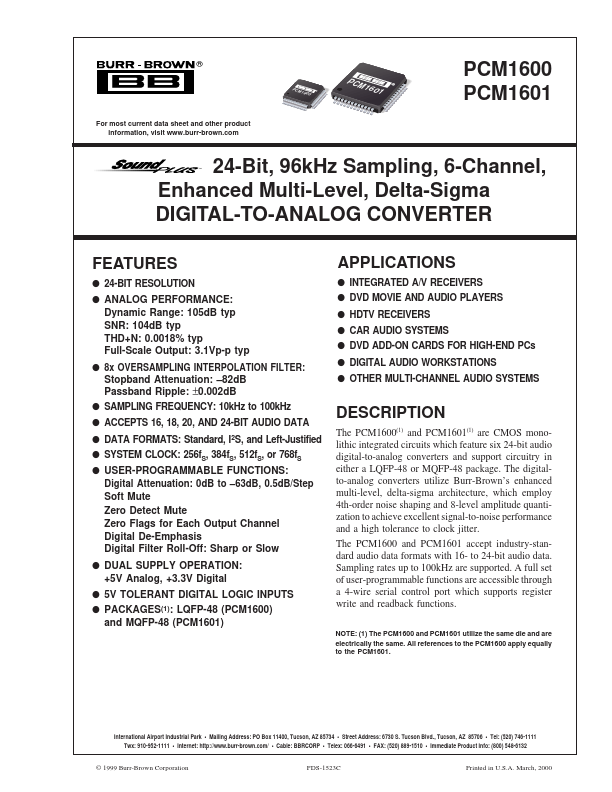

Datasheet preview – PCM1600

📁 Similar Datasheet

  • PCM1602A - Delta-Sigma Digital-to-Analog Converter (Texas Instruments)
  • PCM1680 - Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1681 - Eight-Channel Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1681-Q1 - Eight-Channel Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1690 - Eight-Channel Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM1690-Q1 - Eight-Channel Audio Digital-to-Analog Converter (Texas Instruments)
  • PCM16C00 - Configurable Multiple Function PCMCIA Interface Chip (National Semiconductor)
  • PCM16C010 - Configurable PC Card Interface Chip (National Semiconductor)
  • PCM13001SR - Power Transformers (GROUP-TEK)
  • PCM14004SR - Power Transformers (GROUP-TEK)
Other Datasheets by Burr-Brown
  • PCM1601 - 24-Bit 6-Channel DIGITAL-TO-ANALOG CONVERTER
  • PCM1602 - Delta-Sigma Digital-to-Analog Converter
  • PCM1604 - 24-Bit 6-Channel DIGITAL-TO-ANALOG CONVERTER
  • PCM1605 - 24-Bit 6-Channel DIGITAL-TO-ANALOG CONVERTER
  • PCM1606 - 24-Bit 6-Channel DIGITAL-TO-ANALOG CONVERTER
  • PCM1608 - Delta-Sigma Digital-to-Analog Converter
  • PCM1609A - 24-BIT 8-CHANNEL DIGITAL-TO-ANALOG CONVERTER
  • PCM1700P - dual 18-bit digital-to-analog converter

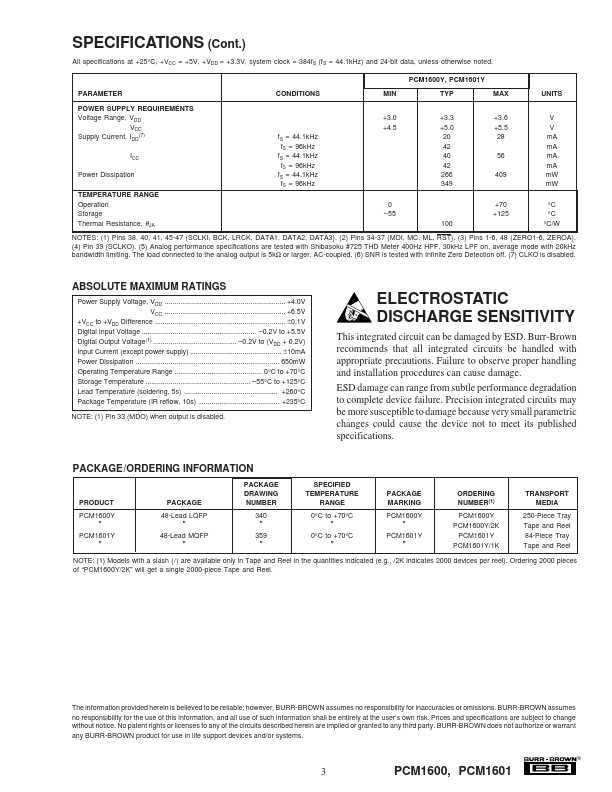

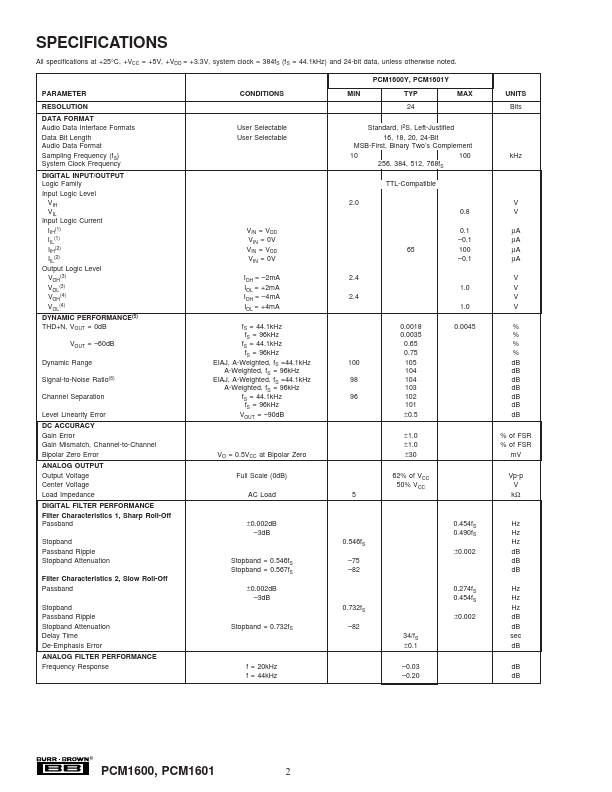

Full PDF Text Transcription

Click to expand full text
® PCM1600 PCM1600 PCM1601 PCM1601 For most current data sheet and other product information, visit www.burr-brown.com TM 24-Bit, 96kHz Sampling, 6-Channel, Enhanced Multi-Level, Delta-Sigma DIGITAL-TO-ANALOG CONVERTER FEATURES q 24-BIT RESOLUTION q ANALOG PERFORMANCE: Dynamic Range: 105dB typ SNR: 104dB typ THD+N: 0.0018% typ Full-Scale Output: 3.1Vp-p typ q 8x OVERSAMPLING INTERPOLATION FILTER: Stopband Attenuation: –82dB Passband Ripple: ±0.002dB q SAMPLING FREQUENCY: 10kHz to 100kHz q ACCEPTS 16, 18, 20, AND 24-BIT AUDIO DATA q DATA FORMATS: Standard, I2S, and Left-Justified q SYSTEM CLOCK: 256fS, 384fS, 512fS, or 768fS q USER-PROGRAMMABLE FUNCTIONS: Digital Attenuation: 0dB to –63dB, 0.
