Datasheet Details
| Part number | REG113 |
|---|---|
| Manufacturer | Burr-Brown (Texas Instruments) |
| File Size | 670.05 KB |
| Description | 400mA Low-Dropout Regulator |
| Datasheet | REG113-BurrBrown.pdf |
|
|

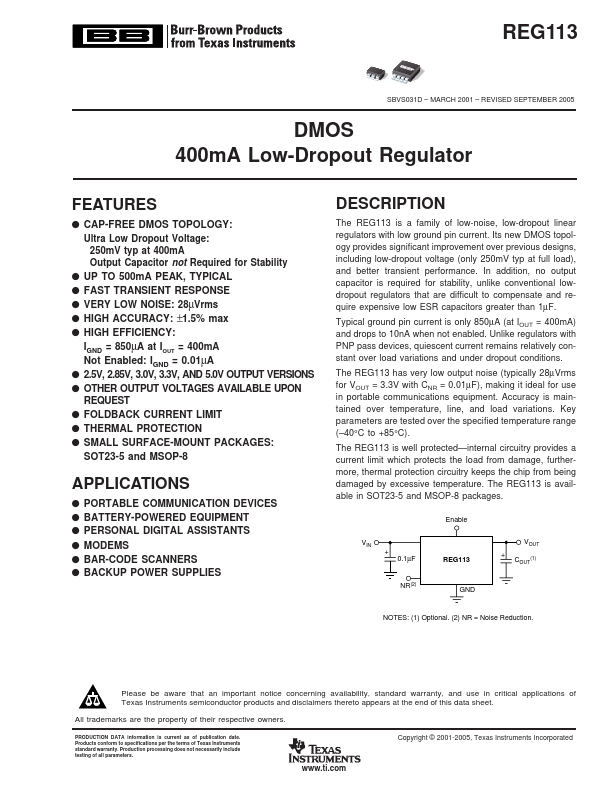

Overview: REG113 SBVS031D – MARCH 2001 – REVISED SEPTEMBER 2005 DMOS 400mA Low-Dropout.
| Part number | REG113 |
|---|---|
| Manufacturer | Burr-Brown (Texas Instruments) |
| File Size | 670.05 KB |
| Description | 400mA Low-Dropout Regulator |
| Datasheet | REG113-BurrBrown.pdf |
|
|
|
The REG113 is a family of low-noise, low-dropout linear regulators with low ground pin current.
Its new DMOS topology provides significant improvement over previous designs, including low-dropout voltage (only 250mV typ at full load), and better transient performance.
In addition, no output capacitor is required for stability, unlike conventional lowdropout regulators that are difficult to compensate and require expensive low ESR capacitors greater than 1µF.
