XGZP6847D - Calibrated Pressure Sensor

CFSensor

Key Features

Wide Ranges: -100kPa…0kPa…1500kPa(show in Pressure Range Example).
2.7V～5.5V Power Supply.
Gauge Pressure Type(Positive&Vacuum).
For Non-corrosive Gas or Air.
Calibrated Digital Signal(I2C Interface)(Refer to XGZP6847A for Analog signal).
Temp. Compensated: 0℃～+60℃(32℉～+140℉).
Temperature Measurable.
Affordable Cost, Easy-to-use √RoHS.

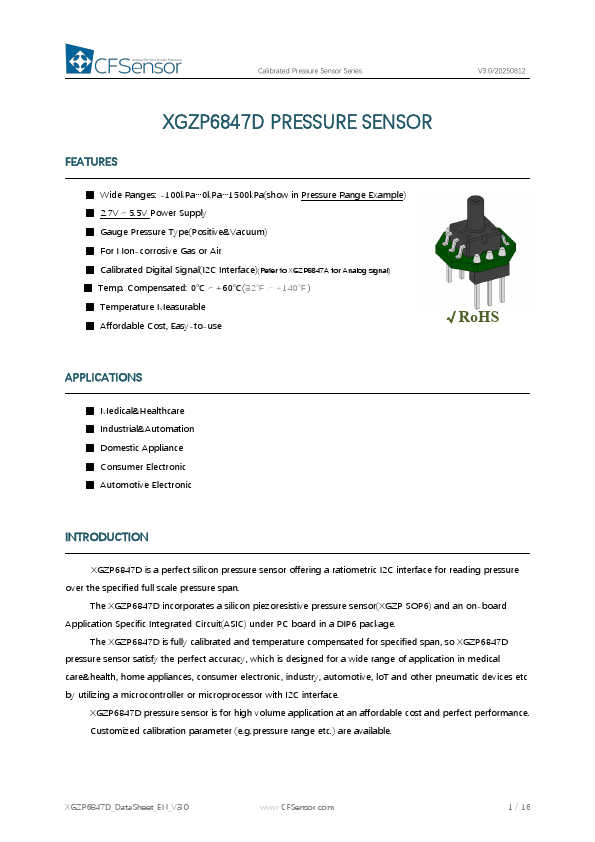

XGZP6847D calibrated pressure sensor by CFSensor - Datasheet Preview

Datasheet Details

Part number	XGZP6847D
Manufacturer	CFSensor
File Size	765.21 KB
Description	Calibrated Pressure Sensor
Datasheet	XGZP6847D Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer

Other Datasheets by CFSensor

Part Number	Description
XGZP6847	Pressure Sensor
XGZP6847A	Pressure Sensor Module
XGZP6841A	Calibrated Pressure Sensor
XGZP6806D	BAROMETRIC PRESSURE SENSOR
XGZP6810D	Calibrated Pressure Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Calibrated Pressure Sensor Series V3.0/20250812 XGZP6847D PRESSURE SENSOR FEATURES ■ Wide Ranges: -100kPa…0kPa…1500kPa(show in Pressure Range Example) ■ 2.7V～5.5V Power Supply ■ Gauge Pressure Type(Positive&Vacuum) ■ For Non-corrosive Gas or Air ■ Calibrated Digital Signal(I2C Interface)(Refer to XGZP6847A for Analog signal) ■ Temp. Compensated: 0℃～+60℃(32℉～+140℉) ■ Temperature Measurable ■ Affordable Cost, Easy-to-use √RoHS APPLICATIONS ■ Medical&Healthcare ■ Industrial&Automation ■ Domestic Appliance ■ Consumer Electronic ■ Automotive Electronic INTRODUCTION XGZP6847D is a perfect silicon pressure sensor offering a ratiometric I2C interface for reading pressure over the specified full scale pressure span.
