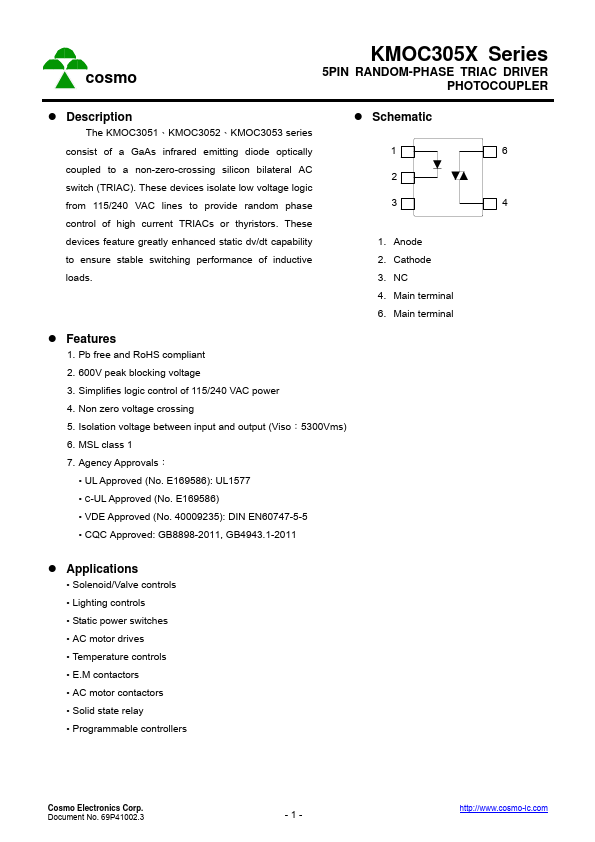

cosmo KMOC305X Series 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER z Description The KMOC3051、KMOC3052、KMOC3053 series z Schematic consist of a Ga As infrared emitting diode optically 6 coupled to a non-zero-crossing silicon bilateral AC 2 switch (TRIAC). These devices isolate low voltage logic from 115/240 VAC lines to provide random phase 4 control of high current TRIACs or thyristors. These devices feature greatly enhanced static dv/dt capability 1. Anode to ensure stable switching performance of inductive 2. Cathode loads. 3. NC 4. Main terminal 6. Main terminal z Features 1. Pb free and Ro HS pliant 2. 600V peak blocking voltage 3. Simplifies logic control of 115/240 VAC power 4. Non zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals： - UL Approved (No. E169586): UL1577 - C-UL Approved (No. E169586) - VDE Approved (No. 40009235): DIN EN60747-5-5 - CQC Approved: GB8898-2011, GB4943.1-2011 z Applications - Solenoid/Valve controls - Lighting controls - Static power switches - AC motor drives - Temperature controls - E.M contactors - AC motor contactors - Solid state relay - Programmable controllers Cosmo Electronics Corp. Document No. 69P41002.3 -1- http://.cosmo-ic. cosmo z Outside Dimension 1. Dual-in-line type. KMOC305X Series 5PIN RANDOM-PHASE TRIAC DRIVER...
