KMOC3052 - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Datasheet Summary

Description

switch (TRIAC).

Features

  • 1. Pb free and RoHS compliant 2. 600V peak blocking voltage 3. Simplifies logic control of 115/240 VAC power 4. Non zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals：.
  • UL Approved (No. E169586): UL1577.
  • C-UL Approved (No. E169586).
  • VDE Approved (No. 40009235): DIN EN60747-5-5.
  • CQC Approved: GB8898-2011, GB4943.1-2011 z.

📥 Download Datasheet

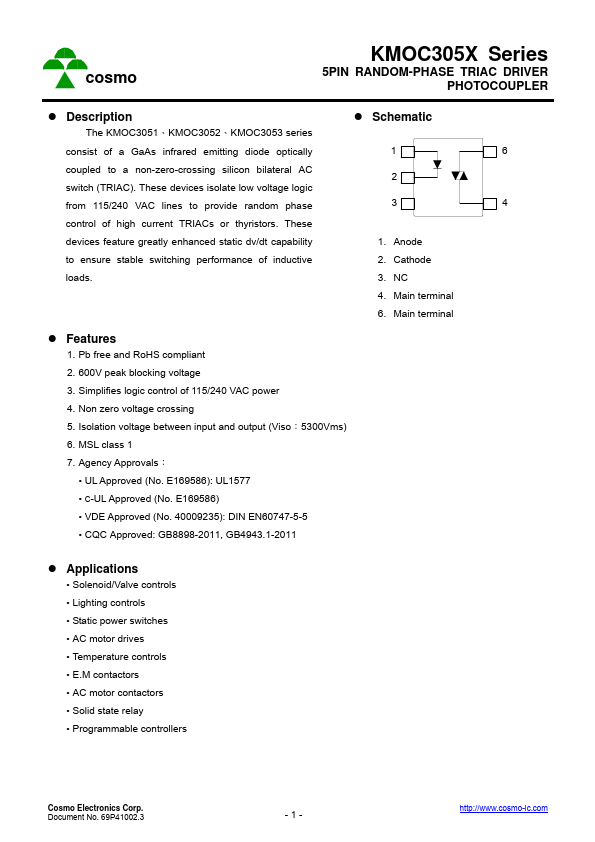

Datasheet preview – KMOC3052

Datasheet Details

Part number KMOC3052
Manufacturer COSMO Electronics
File Size 244.25 KB
Description 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
Datasheet download datasheet KMOC3052 Datasheet
Additional preview pages of the KMOC3052 datasheet.

📁 Similar Datasheet

  • KMOC3011 - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3011H - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3011L - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3011S - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3012 - 4PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3012H - 4PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3012L - 4PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3012S - 4PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3041-P - 6PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
  • KMOC3042-P - 6PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (Cosmo)
Other Datasheets by COSMO Electronics
  • KMOC3051 - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
  • KMOC3053 - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
  • KMOC3053H - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
  • KMOC3053L - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
  • KMOC3053S - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
  • KMOC3021 - Optoisolators Triac Driver Output
  • KMOC3022 - OPTOISOLATORS TRIAC DRIVER OUTPUT
  • KMOC3023 - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text

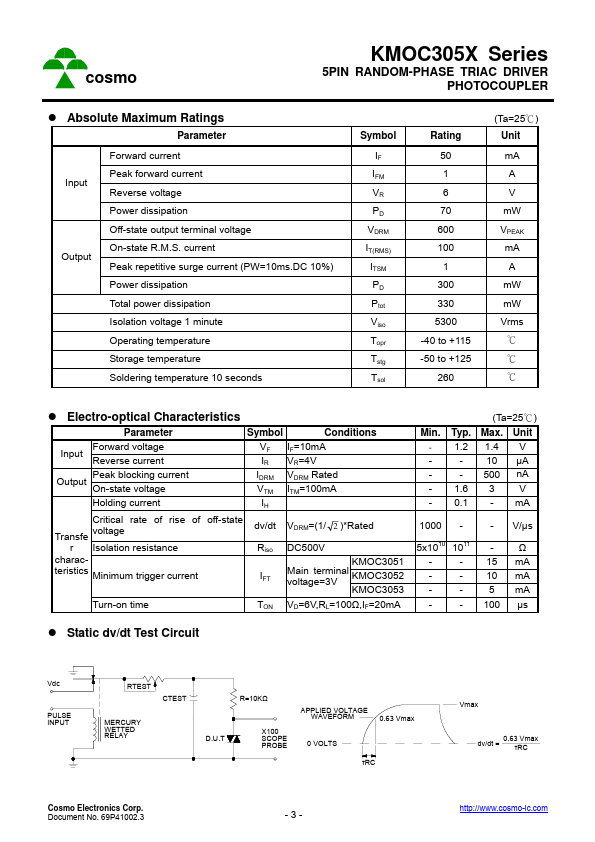

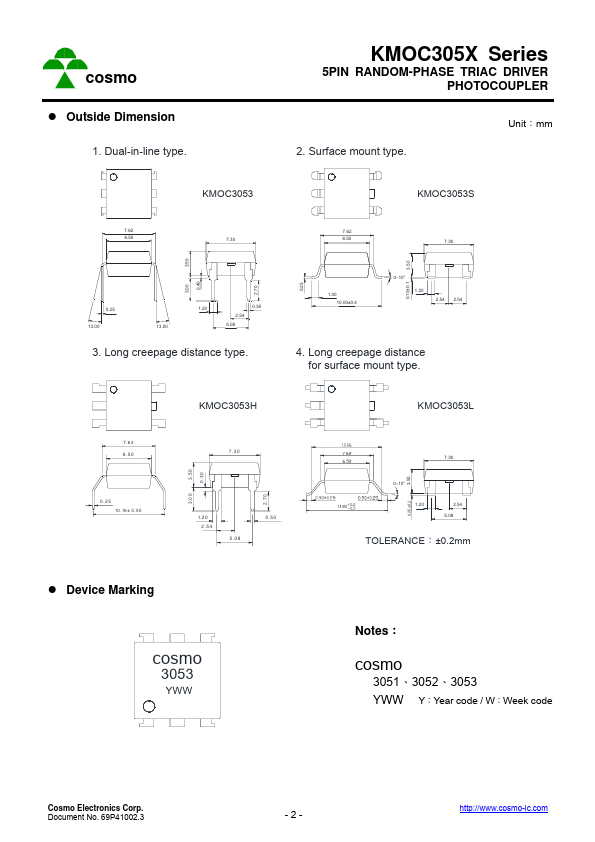

cosmo KMOC305X Series 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER z Description The KMOC3051、KMOC3052、KMOC3053 series z Schematic consist of a GaAs infrared emitting diode optically 1 6 coupled to a non-zero-crossing silicon bilateral AC 2 switch (TRIAC). These devices isolate low voltage logic from 115/240 VAC lines to provide random phase 3 4 control of high current TRIACs or thyristors. These devices feature greatly enhanced static dv/dt capability 1. Anode to ensure stable switching performance of inductive 2. Cathode loads. 3. NC 4. Main terminal 6. Main terminal z Features 1. Pb free and RoHS compliant 2. 600V peak blocking voltage 3. Simplifies logic control of 115/240 VAC power 4. Non zero voltage crossing 5.
