KMOC3053 - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Datasheet Summary

Description

switch (TRIAC).

Features

  • 1. Pb free and RoHS compliant 2. 600V peak blocking voltage 3. Simplifies logic control of 115/240 VAC power 4. Non zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals：.
  • UL Approved (No. E169586): UL1577.
  • C-UL Approved (No. E169586).
  • VDE Approved (No. 40009235): DIN EN60747-5-5.
  • CQC Approved: GB8898-2011, GB4943.1-2011 z.

📥 Download Datasheet

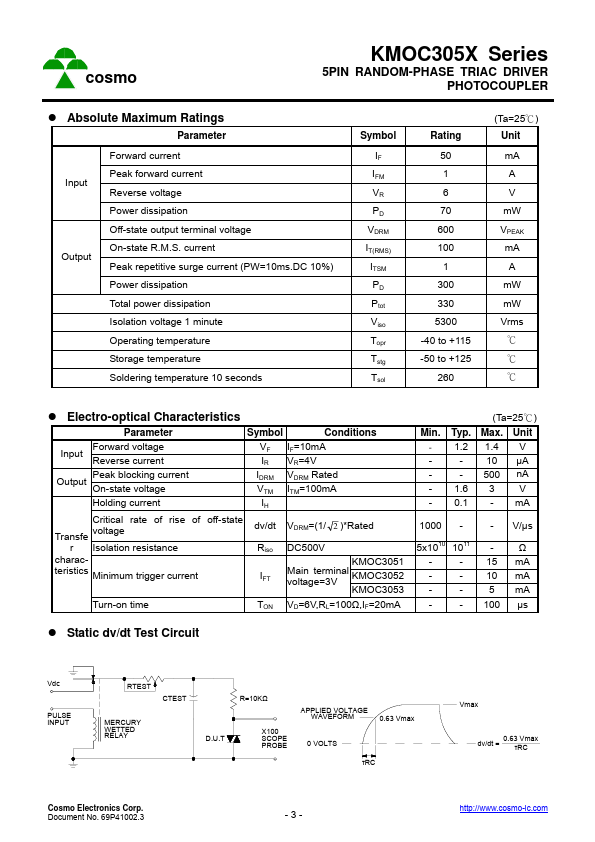

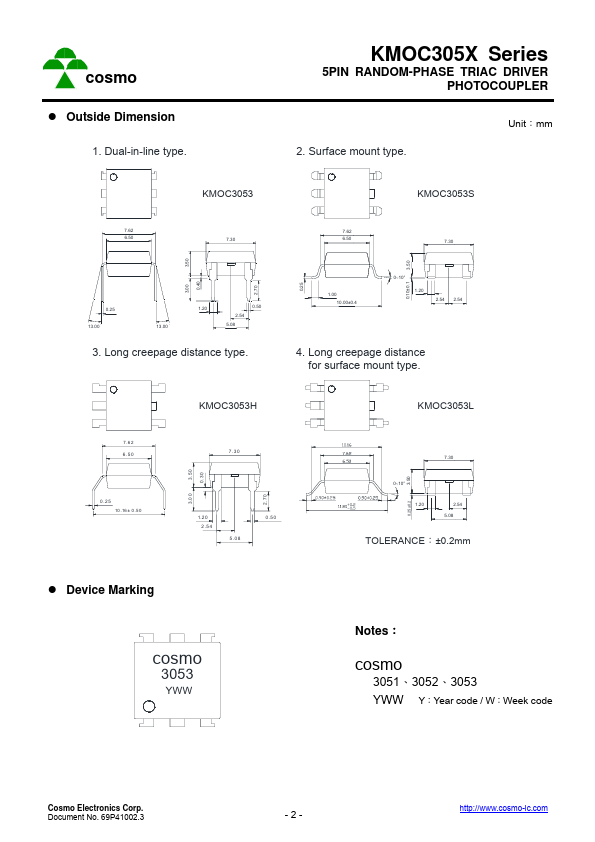

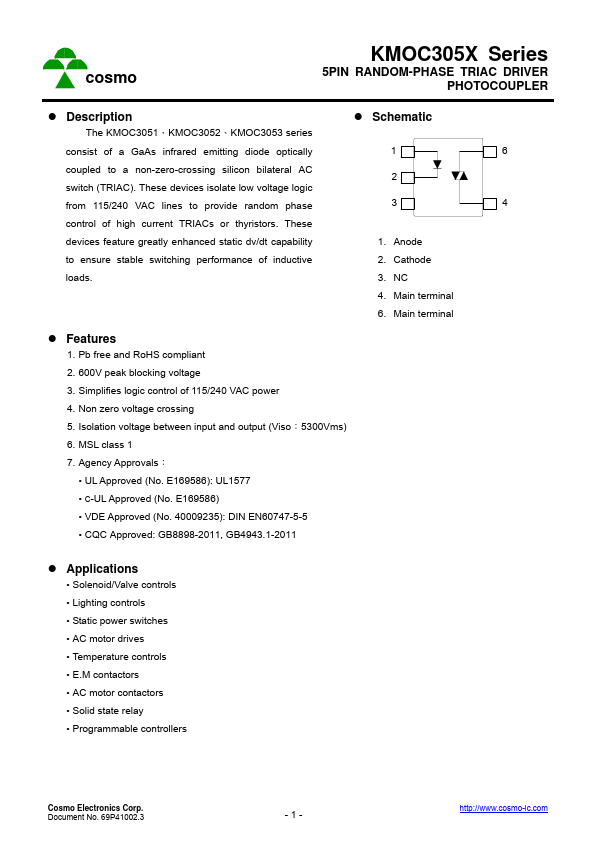

Datasheet preview – KMOC3053

Datasheet Details

Part number KMOC3053
Manufacturer COSMO Electronics
File Size 244.25 KB
Description 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
Datasheet download datasheet KMOC3053 Datasheet
