KMOC3063H - 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

This page provides the datasheet information for the KMOC3063H, a member of the KMOC3063 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER family.

Datasheet Summary

Description

The KMOC3061 、 KMOC3062 、 KMOC3063

optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver.

Features

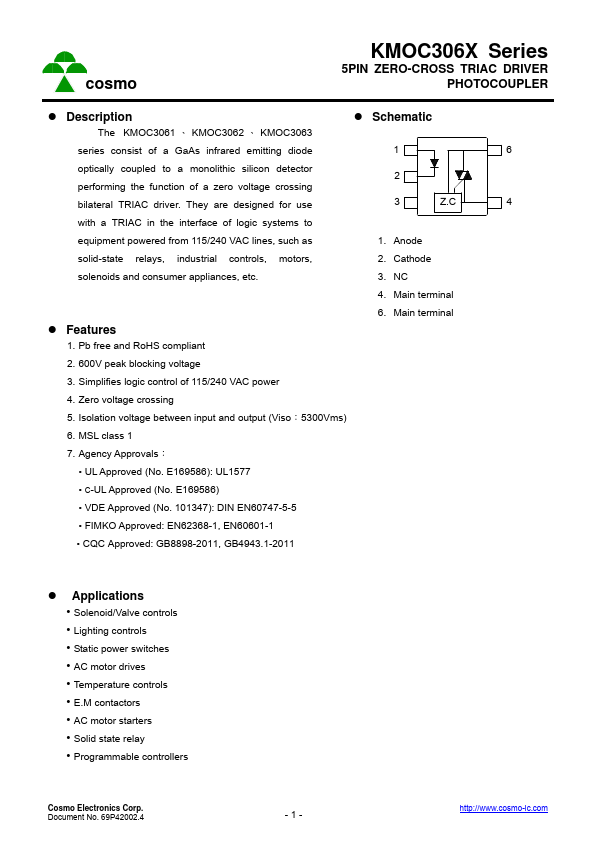

  • Pb free and RoHS compliant 6. Main terminal 2. 600V peak blocking voltage 3. Simplifies logic control of 115/240 VAC power 4. Zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals：.
  • UL Approved (No. E169586): UL1577.
  • C-UL Approved (No. E169586).
  • VDE Approved (No. 101347): DIN EN60747-5-5.
  • FIMKO Approved: EN62368-1, EN60601-1.
  • CQC Approved: GB8898-2011, GB4943.1-2011.
  • Ap.

📥 Download Datasheet

Datasheet preview – KMOC3063H

Datasheet Details

Part number KMOC3063H
Manufacturer COSMO Electronics
File Size 233.09 KB
Description 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
Datasheet download datasheet KMOC3063H Datasheet
