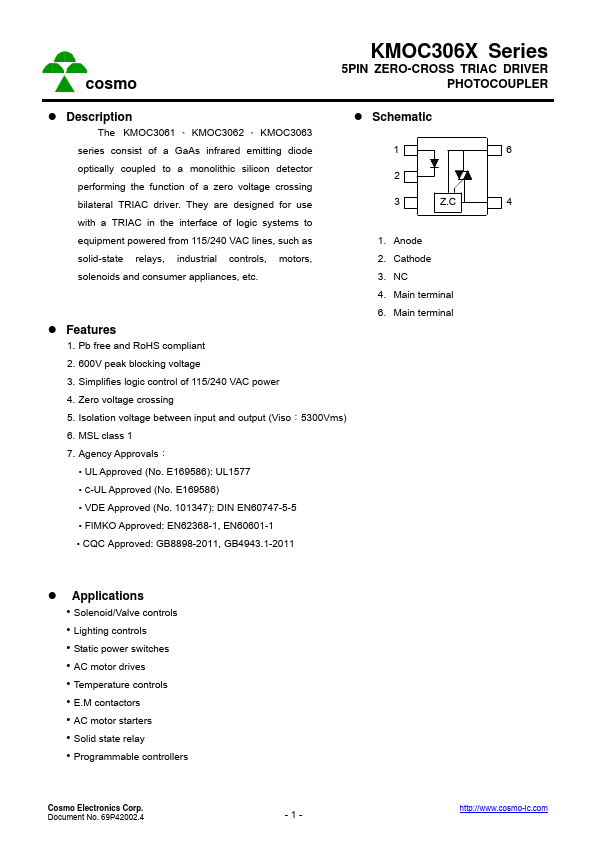

Description The KMOC3061 、 KMOC3062 、 KMOC3063 - Schematic series consist of a Ga As infrared emitting diode 6 optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use Z.C 4 with a TRIAC in the interface of logic systems to equipment powered from 115/240 VAC lines, such as 1. Anode solid-state relays, industrial controls, motors, 2. Cathode solenoids and consumer appliances, etc. 3. NC 4. Main terminal - Features 1. Pb free and Ro HS pliant 6. Main terminal 2. 600V peak blocking voltage 3. Simplifies logic control of 115/240 VAC power 4. Zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals： - UL Approved (No. E169586): UL1577 - C-UL Approved (No. E169586) - VDE Approved (No. 101347): DIN EN60747-5-5 - FIMKO Approved: EN62368-1, EN60601-1 - CQC Approved: GB8898-2011, GB4943.1-2011 - Applications - Solenoid/Valve controls - Lighting controls - Static power switches - AC motor drives - Temperature controls - E.M contactors - AC motor starters - Solid state relay - Programmable controllers Cosmo Electronics Corp. Document No. 69P42002.4 -1- http://.cosmo-ic. cosmo - Outside Dimension 1. Dual-in-line...
