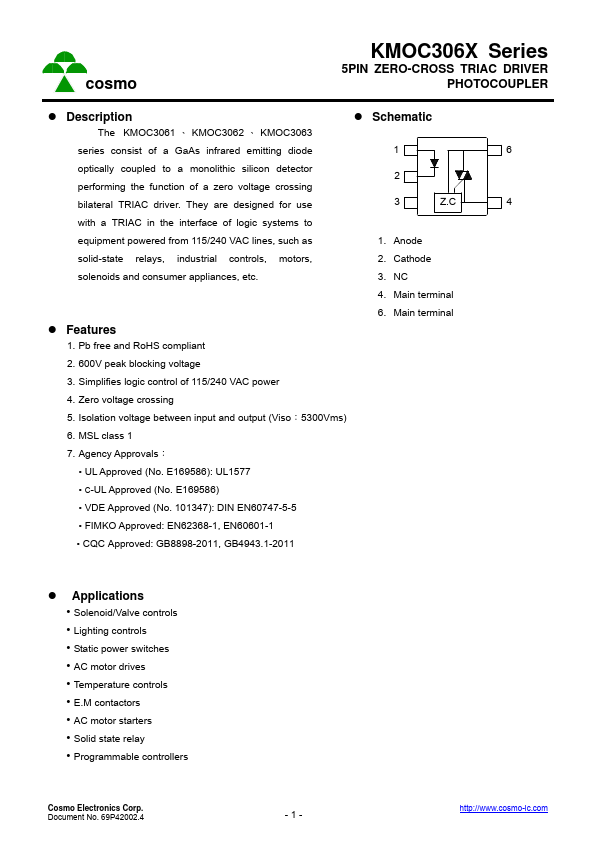

KMOC3063L Overview
The KMOC3061 、 KMOC3062 、 KMOC3063 Schematic series consist of a GaAs infrared emitting diode 1 6 optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use 2 3 Z.C 4 with a TRIAC in the interface of logic systems to equipment powered from 115/240 VAC lines, such as 1. Anode solid-state relays, industrial controls, motors,.
KMOC3063L Key Features
- UL Approved (No. E169586): UL1577
- C-UL Approved (No. E169586)
- VDE Approved (No. 101347): DIN EN60747-5-5
- FIMKO Approved: EN62368-1, EN60601-1
- CQC Approved: GB8898-2011, GB4943.1-2011
