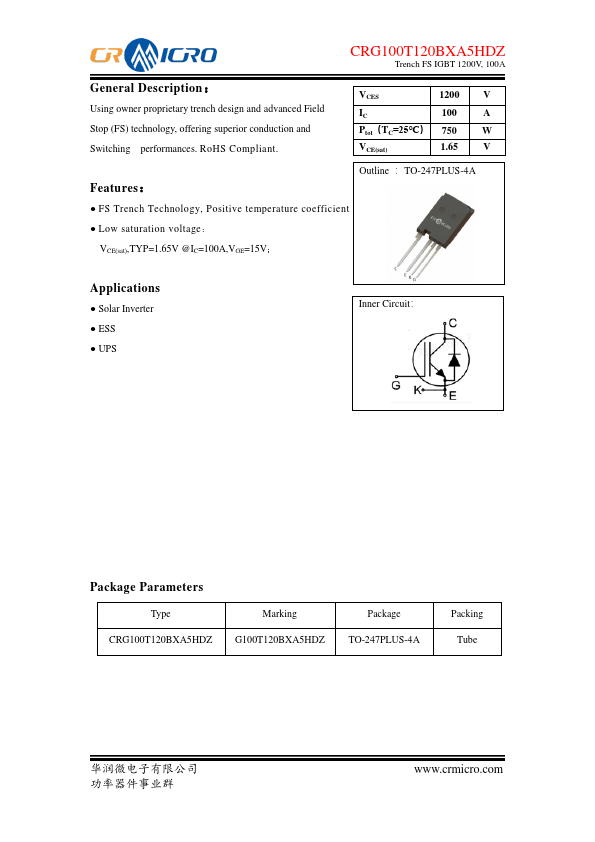

CRG100T120BXA5HDZ
CRG100T120BXA5HDZ is 1200V 100A Trench FS IGBT manufactured by CR Micro.
Description
：
Using owner proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and Switching performances. Ro HS pliant.
VCES
1200 V
Ptot（TC=25℃） 750
VCE(sat)
1.65 V
Features
：
Outline ：TO-247PLUS-4A
- FS Trench Technology, Positive temperature coefficient
- Low saturation voltage：
VCE(sat),TYP=1.65V @IC=100A,VGE=15V；
Applications
- Solar Inverter
- ESS
- UPS
Inner Circuit：
Package Parameters
Type CRG100T120BXA5HDZ
Marking G100T120BXA5HDZ
Package TO-247PLUS-4A
Packing Tube
华润微电子有限公司 功率器件事业群
.crmicro.
Trench FS IGBT 1200V, 100A

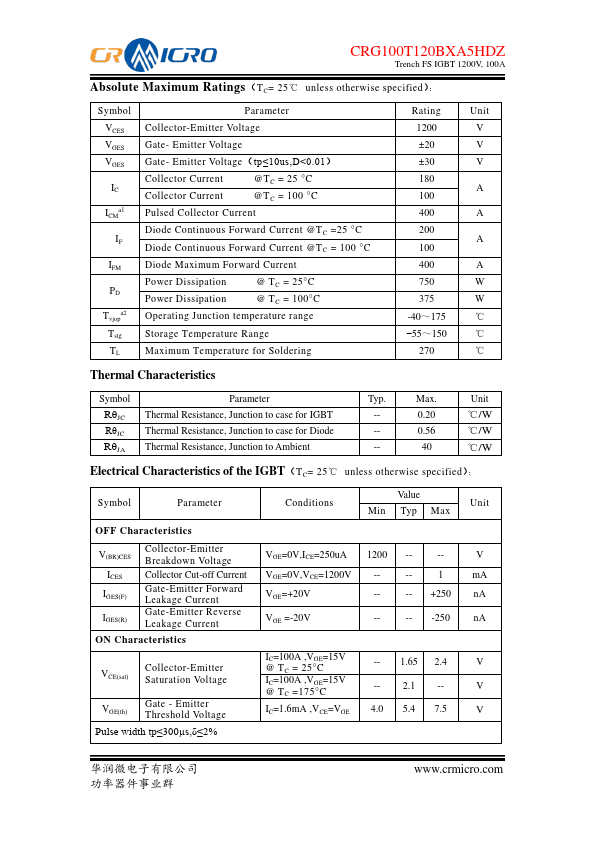

Absolute Maximum Ratings（TC= 25℃ unless otherwise specified）：
Symbol VCES VGES VGES
IC ICMa1
PD Tvjopa2
Tstg TL
Parameter
Collector-Emitter Voltage
Gate- Emitter Voltage
Gate- Emitter Voltage（ tp≤10us,D<0.01）...
