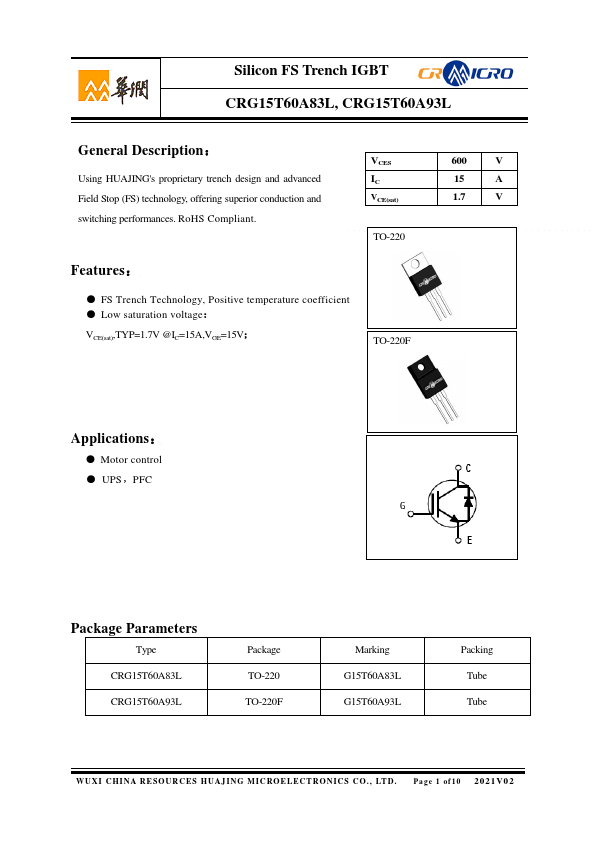

CRG15T60A83L
CRG15T60A83L is Silicon FS Trench IGBT manufactured by CR Micro.
Description
：
Using HUAJING's proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances. Ro HS pliant.
VCES IC
VCE(sat)
TO-220
Features
：
- FS Trench Technology, Positive temperature coefficient
- Low saturation voltage： VCE(sat),TYP=1.7V @IC=15A,VGE=15V；
TO-220F
Applications：
- Motor control
- UPS，PFC
Package Parameters
Type CRG15T60A83L CRG15T60A93L
Package TO-220 TO-220F
Marking G15T60A83L G15T60A93L
Packing Tube Tube
WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO., LTD. Page 1 of 10 2021V02
CRG15T60A83L, CRG15T60A93L

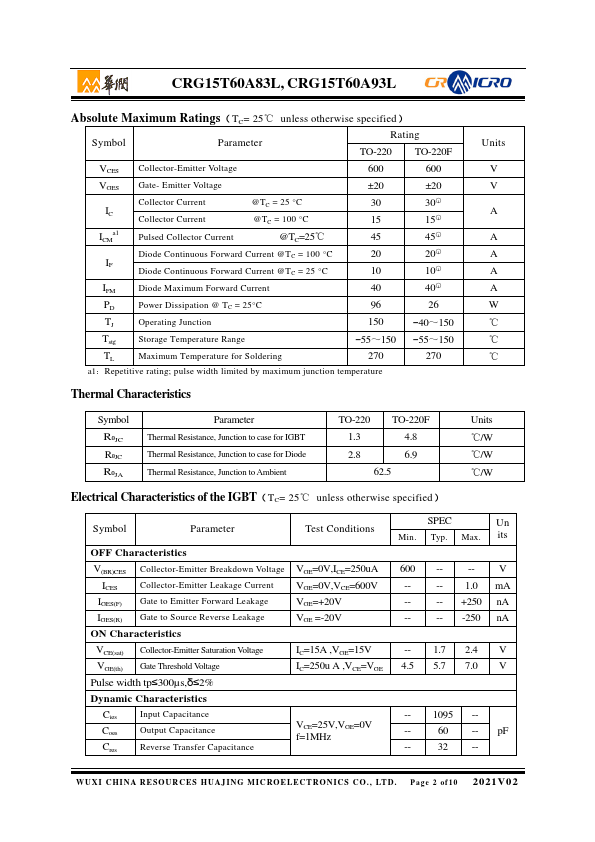

Absolute Maximum Ratings（TC= 25℃ unless otherwise specified）
Symbol
Parameter
Rating TO-220 TO-220F
VCES Collector-Emitter Voltage
VGES Gate- Emitter Voltage
±20
±20
Collector Current
Collector Current
@TC = 25 °C @TC = 100...
