CRG15T60A93L - IGBT

Download the CRG15T60A93L datasheet PDF. This datasheet also covers the CRG15T60A83L variant, as both devices belong to the same igbt family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CRG15T60A83L-CRMicro.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CRG15T60A93L
Manufacturer CR Micro
File Size 1.08 MB
Description IGBT
Datasheet download datasheet CRG15T60A93L Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CRG10A Rectifier Diode Toshiba
CRG1206 Thick Film Chip Resistors TE
CRG01 Rectifier Toshiba Semiconductor
CRG02 Rectifier Toshiba Semiconductor
CRG0201 Thick Film Chip Resistors TE

Other Datasheets by CR Micro

Part Number Description
CRG15T60A94S IGBT
CRG15T60A04S IGBT
CRG15T60A83L IGBT
CRG15T60A84S IGBT
CRG15T65R05SDZ-G IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

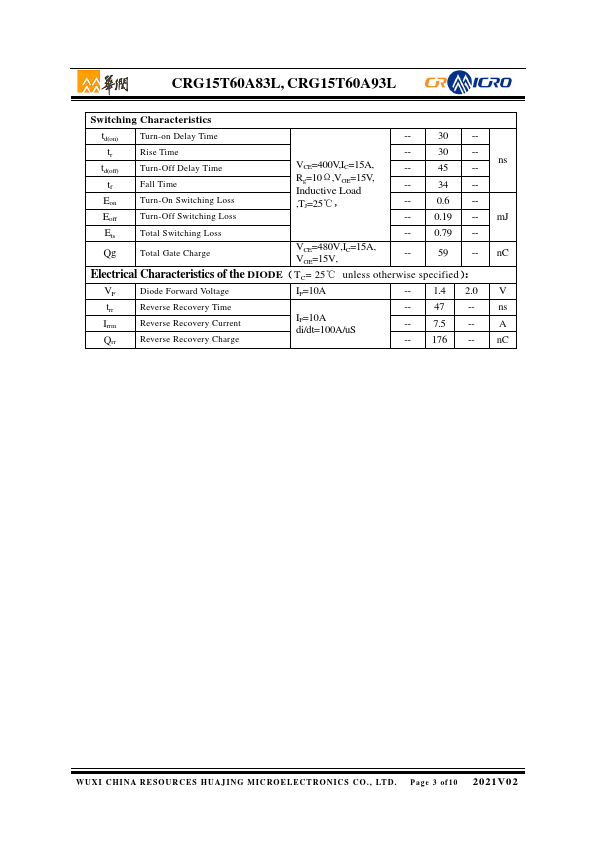

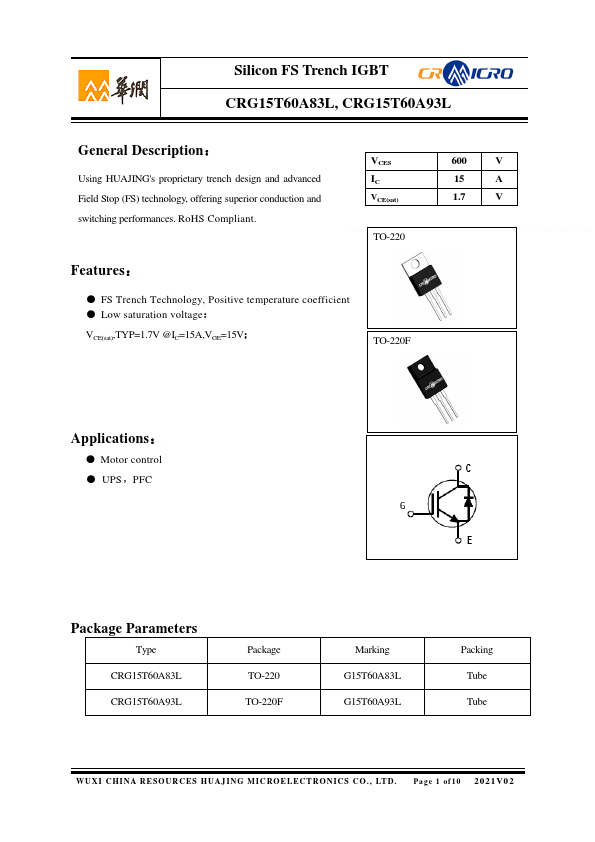

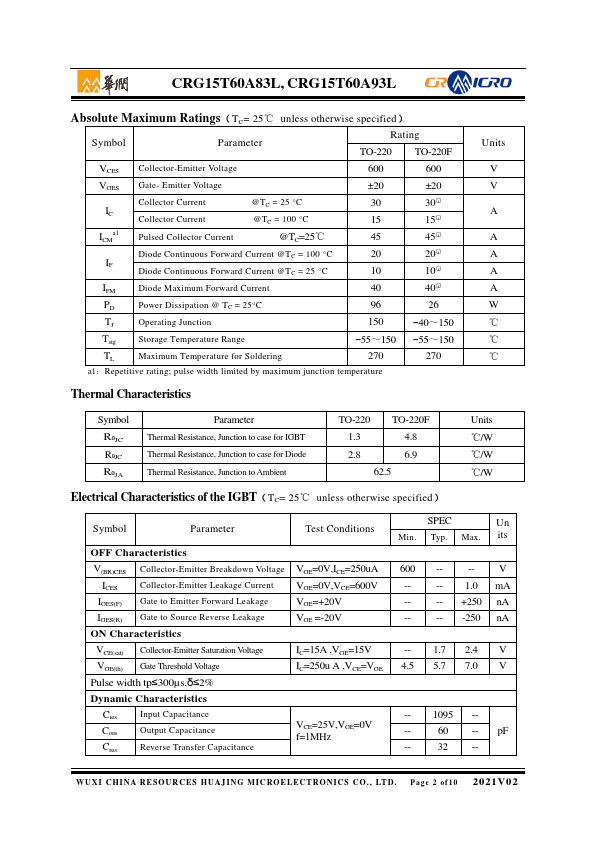

CRG15T60A83L, CRG15T60A93L CRG15T60A83L CRG15T60A93L 。 RoHS 。 ● ， ● ， ● ， ● VCES 600 V IC 15 A VCE(sat) 1.7 V ：TO-220 ：TO-220F ● ● UPS，PFC CRG15T60A83L CRG15T60A93L TO-220 TO-220F G15T60A83L G15T60A93L 2021V02 1 / 10 CRG15T60A83L, CRG15T60A93L （，TJ= 25℃） VCES - VGES - IC @TC=25℃ @TC=100℃ ICM○2 IF @TC=25℃ @TC=100℃ IFM○2 PD @TC=25℃ TJ Tstg TL ：○1 ： ○2 ： RθJC （IGBT） RθJC （） RθJA TO-220AB TO-220F 600 ±20 30 15 45 20 10 40 96 150 -55～150 270 600 ±20 30○1 15○1 45○1 20○1 10○1 40○1 26 150 -55～150 270 220AB 1.3 2.8 62.5 220F 4.8 6.
