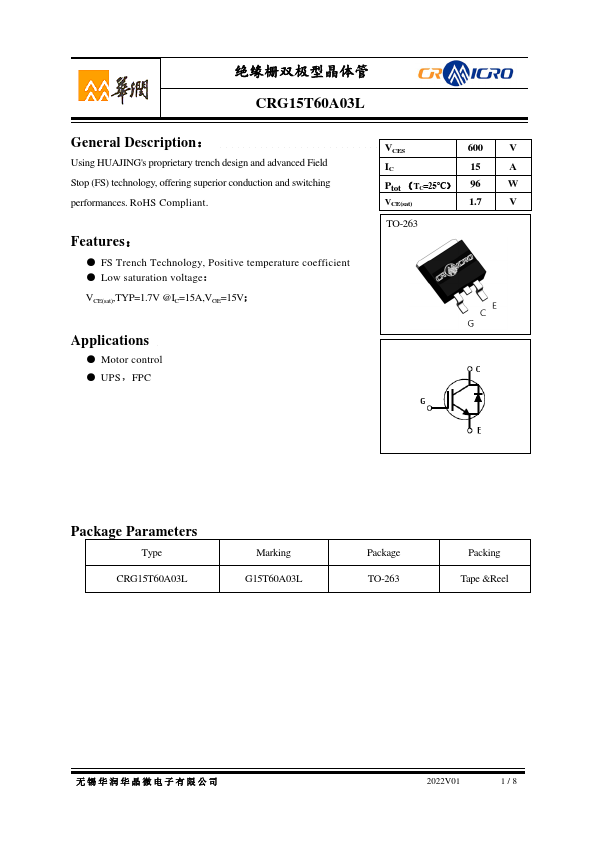

CRG15T60A03L
CRG15T60A03L is IGBT manufactured by CR Micro.
Description
：
Using HUAJING's proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances. Ro HS pliant.
Features
：
- FS Trench Technology, Positive temperature coefficient
- Low saturation voltage： VCE(sat),TYP=1.7V @IC=15A,VGE=15V；
VCES
600 V
Ptot （TC=25℃） 96
VCE(sat)
1.7 V
TO-263
Applications
- Motor control
- UPS，FPC
Package Parameters
Type
Marking G15T60A03L
Package TO-263
Packing Tape &Reel
无锡华润华晶微电子有限公司
2022V01
1/8

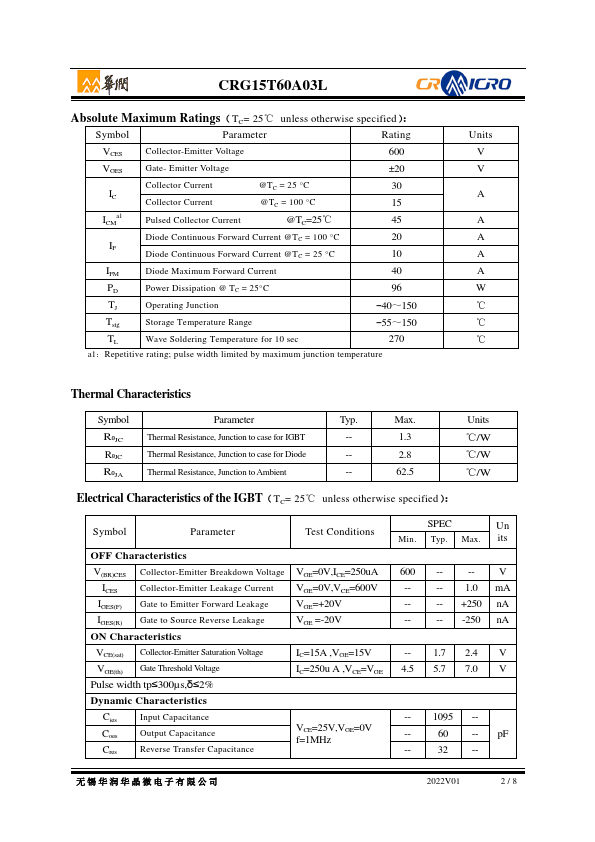

Absolute Maximum Ratings（TC= 25℃ unless otherwise specified）：
Symbol
Parameter
Rating
VCES
Collector-Emitter Voltage
VGES
Gate- Emitter Voltage
±20
Collector Current
@TC = 25 °C
Collector...
