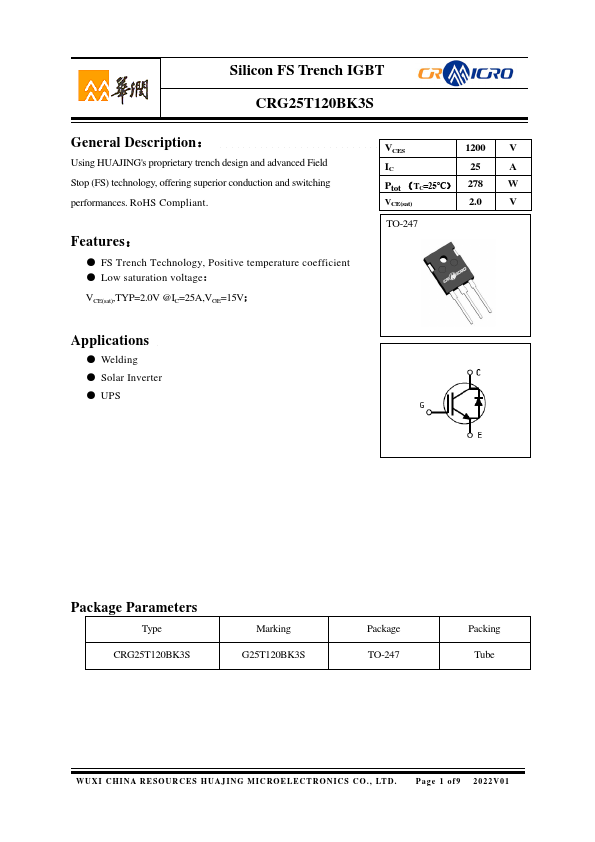

CRG25T120BK3S
CRG25T120BK3S is Silicon FS Trench IGBT manufactured by CR Micro.
Description
：
Using HUAJING's proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances. Ro HS pliant.
Features
：
- FS Trench Technology, Positive temperature coefficient
- Low saturation voltage： VCE(sat),TYP=2.0V @IC=25A,VGE=15V；
VCES
1200 V
Ptot （TC=25℃） 278
VCE(sat)
2.0 V
TO-247
Applications
- Welding
- Solar Inverter
- UPS
Package Parameters
Type
Marking G25T120BK3S
Package TO-247
Packing Tube
WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO., LTD. Page 1 of9 2022V01

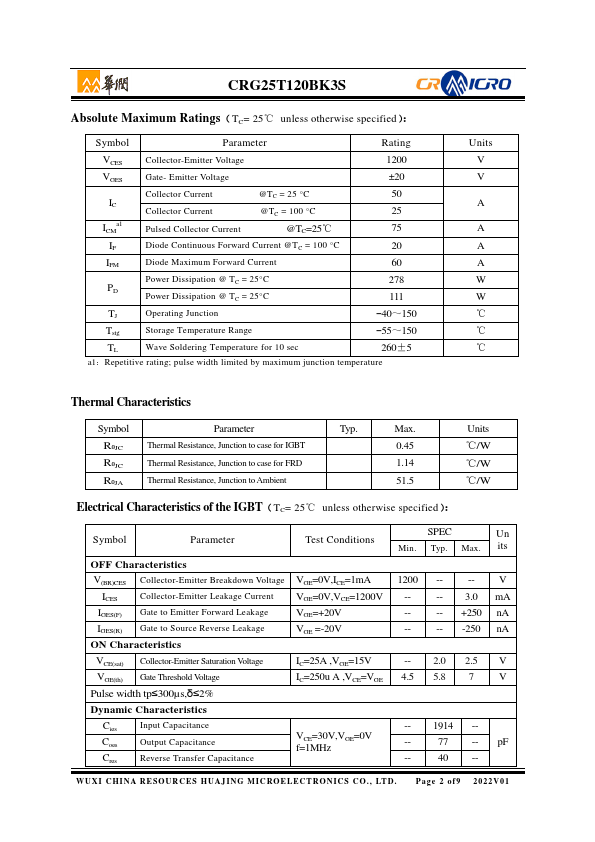

Absolute Maximum Ratings（TC= 25℃ unless otherwise specified）：
Symbol
Parameter
Rating
VCES
Collector-Emitter Voltage
VGES
Gate- Emitter Voltage
±20
Collector Current
@TC = 25 °C
Collector Current
@TC = 100...
