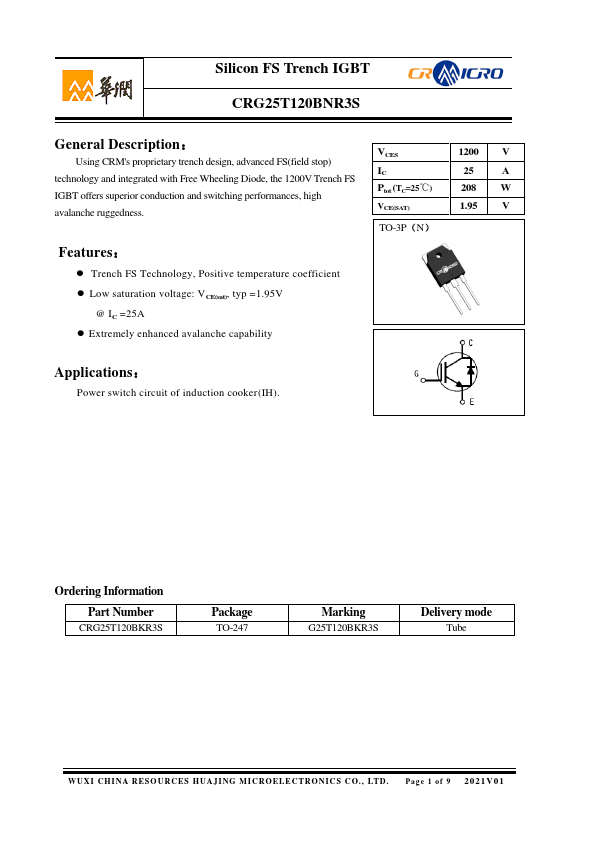

CRG25T120BNR3S
CRG25T120BNR3S is Silicon FS Trench IGBT manufactured by CR Micro.
Description
：
Using CRM's proprietary trench design, advanced FS(field stop) technology and integrated with Free Wheeling Diode, the 1200V Trench FS IGBT offers superior conduction and switching performances, high avalanche ruggedness.
Features
：
- Trench FS Technology, Positive temperature coefficient
- Low saturation voltage: VCE(sat), typ =1.95V
@ IC =25A
- Extremely enhanced avalanche capability
VCES IC Ptot (TC=25℃)
VCE(SAT)
TO-3P（N）
1200 V
208 W
1.95 V
Applications：
Power switch circuit of induction cooker(IH).
Ordering Information
Part Number
CRG25T120BKR3S
Package
TO-247
Marking
G25T120BKR3S
Delivery mode
Tube
WUXI CHINA RESO URCES HUAJING MICROELECTRONICS CO., LTD. Page 1 of 9 2021V01

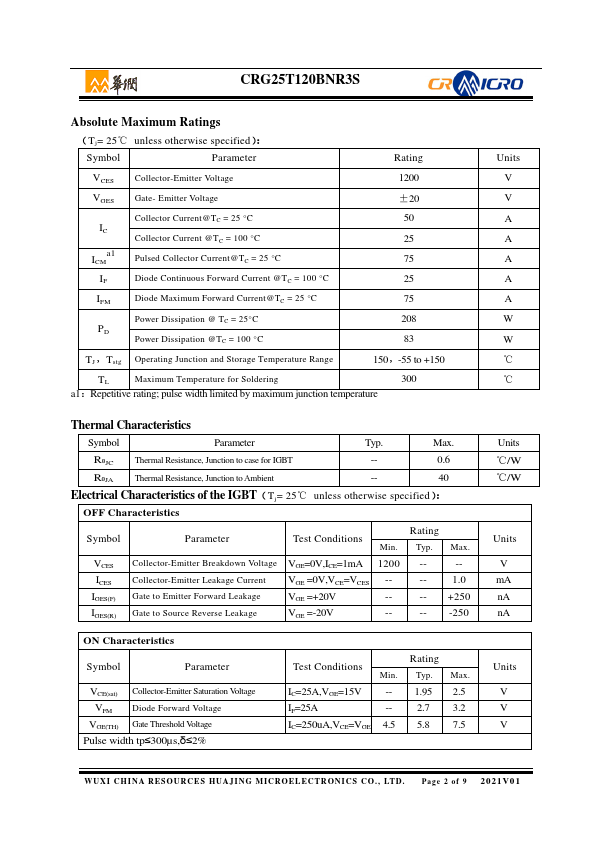

Absolute Maximum Ratings
（Tj= 25℃ unless otherwise specified）：
Symbol
Parameter
Rating
VCES VGES
Collector-Emitter Voltage Gate- Emitter Voltage
1200 ±20
Collector Current@TC = 25 °C
Collector Current @TC = 100...
