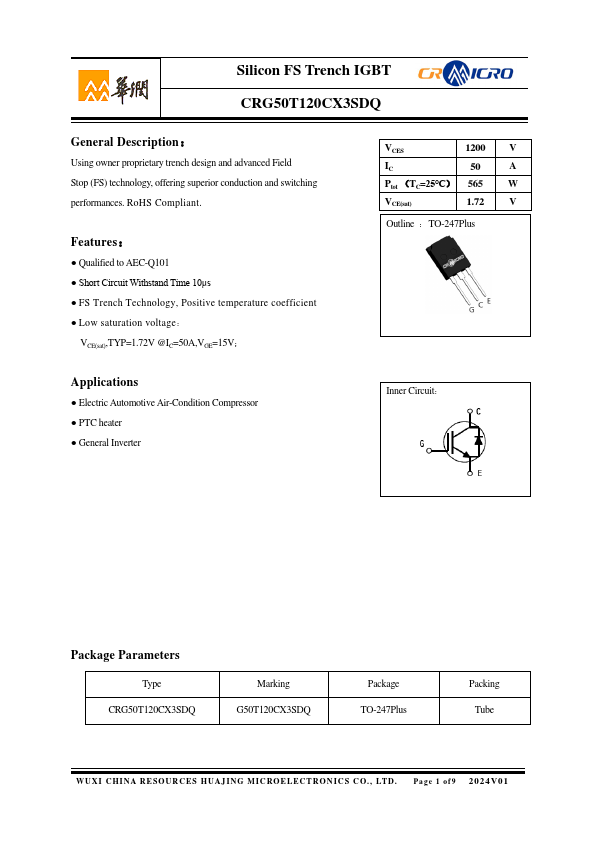

CRG50T120CX3SDQ
CRG50T120CX3SDQ is Silicon FS Trench IGBT manufactured by CR Micro.
Description
：
Using owner proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances. Ro HS pliant.
Features
：
- Qualified to AEC-Q101
- Short Circuit Withstand Time 10μs
- FS Trench Technology, Positive temperature coefficient
- Low saturation voltage：
VCE(sat),TYP=1.72V @IC=50A,VGE=15V；
VCES
1200 V
Ptot （TC=25℃） 565
VCE(sat)
1.72 V
Outline ：TO-247Plus
Applications
- Electric Automotive Air-Condition pressor
- PTC heater
- General Inverter
Inner Circuit：
Package Parameters
Type CRG50T120CX3SDQ
Marking G50T120CX3SDQ
Package TO-247Plus
Packing Tube
WUXI CHINA RESOURCES HUAJING MICROELECTRON ICS CO., LTD. Page 1 of 9 2024V01

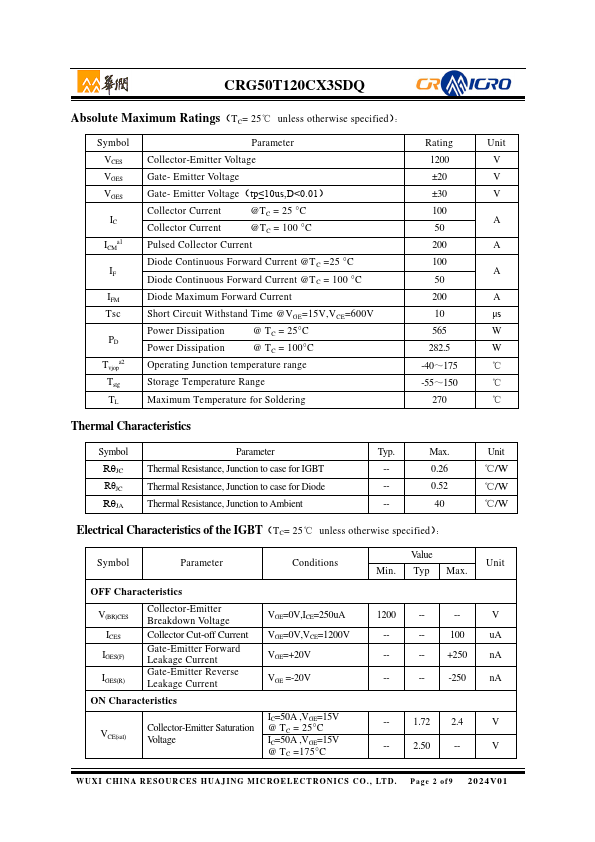

Absolute Maximum Ratings（TC= 25℃ unless otherwise specified）：
Symbol VCES VGES VGES
IC ICMa1
IFM Tsc
PD Tvjopa2 Tstg
Parameter
Collector-Emitter Voltage
Gate- Emitter Voltage
Gate- Emitter Voltage（tp≤10us,D<0.01）...
