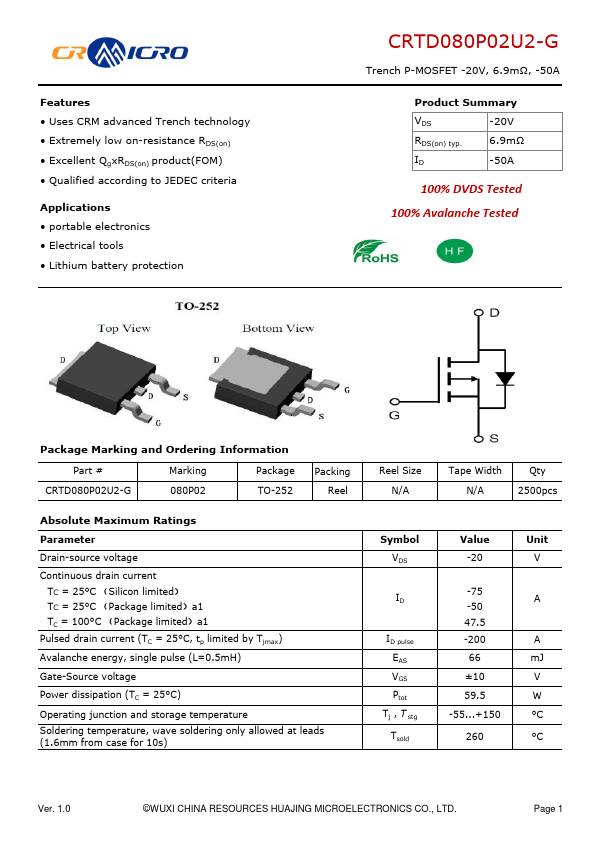

CRTD080P02U2-G Description
Features Uses CRM advanced Trench technology Extremely low on-resistance RDS(on) Excellent QgxRDS(on) product(FOM) Qualified according to JEDEC criteria Applications portable electronics Electrical tools Lithium battery protection CRTD080P02U2-G Trench P-MOSFET -20V, 6.9mΩ, -50A Product Summary VDS -20V RDS(on) typ. 1.0 ©WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO., LTD. Page 1 CRTD080P02U2-G Trench P-MOSFET...
CRTD080P02U2-G Key Features
- Uses CRM advanced Trench technology
- Extremely low on-resistance RDS(on)
- Excellent QgxRDS(on) product(FOM)
- Qualified according to JEDEC criteria
