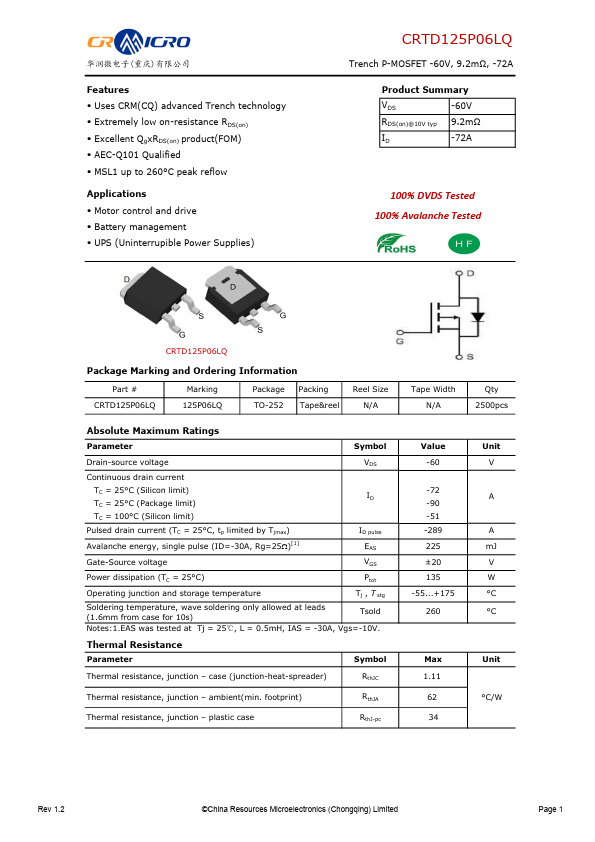

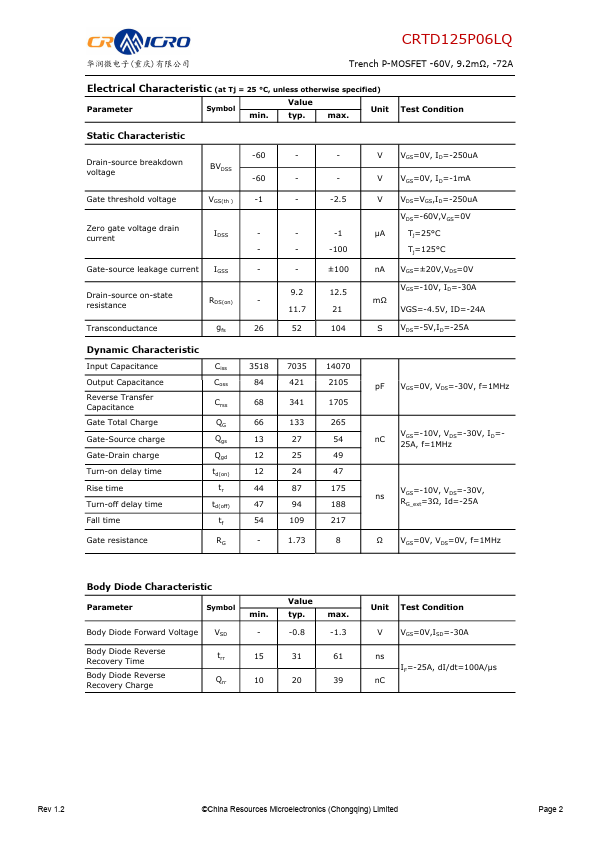

CRTD125P06LQ
CRTD125P06LQ is Trench P-MOSFET manufactured by CR Micro.
华润微电子(重庆)有限公司
Features
- Uses CRM(CQ) advanced Trench technology
- Extremely low on-resistance RDS(on)
- Excellent QgxRDS(on) product(FOM)
- AEC-Q101 Qualified
- MSL1 up to 260°C peak reflow
Applications
- Motor control and drive
- Battery management
- UPS (Uninterrupible Power Supplies)
Trench P-MOSFET -60V, 9.2mΩ, -72A
Product Summary
-60V
RDS(on)@10V typ 9.2mΩ
-72A
100% DVDS Tested 100% Avalanche Tested
Package Marking and Ordering Information
Part # CRTD125P06LQ
Marking 125P06LQ
Package TO-252
Packing Tape&reel
Reel Size...
