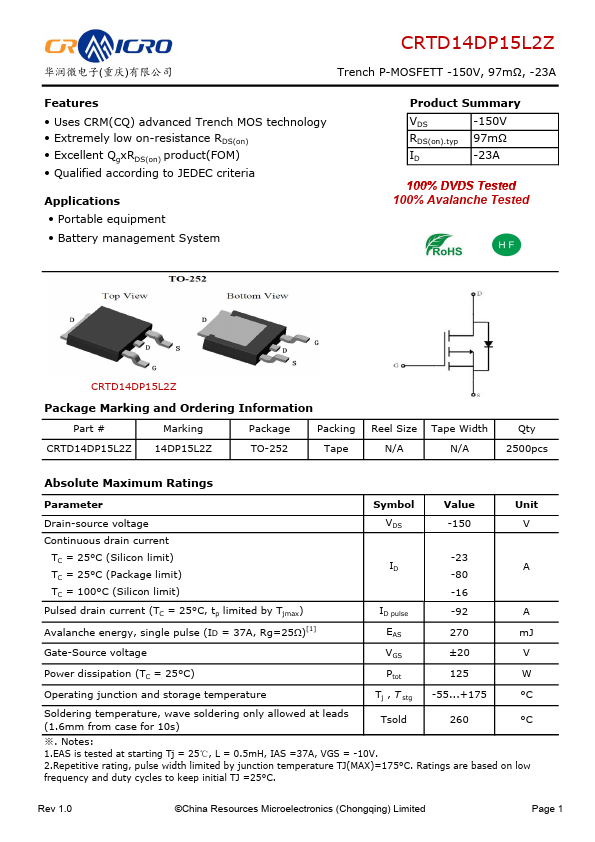

CRTD14DP15L2Z
CRTD14DP15L2Z is Trench P-MOSFET manufactured by CR Micro.
华润微电子(重庆)有限公司
Trench P-MOSFETT -150V, 97mΩ, -23A
Features
- Uses CRM(CQ) advanced Trench MOS technology
- Extremely low on-resistance RDS(on)
- Excellent QgxRDS(on) product(FOM)
- Qualified according to JEDEC criteria
Applications
- Portable equipment
- Battery management System
Product Summary
VDS RDS(on).typ ID
-150V 97mΩ -23A
100% DVDS Tested 100% Avalanche Tested
Package Marking and Ordering Information
Part #
Marking
Package
Packing
CRTD14DP15L2Z 14DP15L2Z
TO-252
Tape
Reel Size Tape Width
N/A
N/A
Qty...
