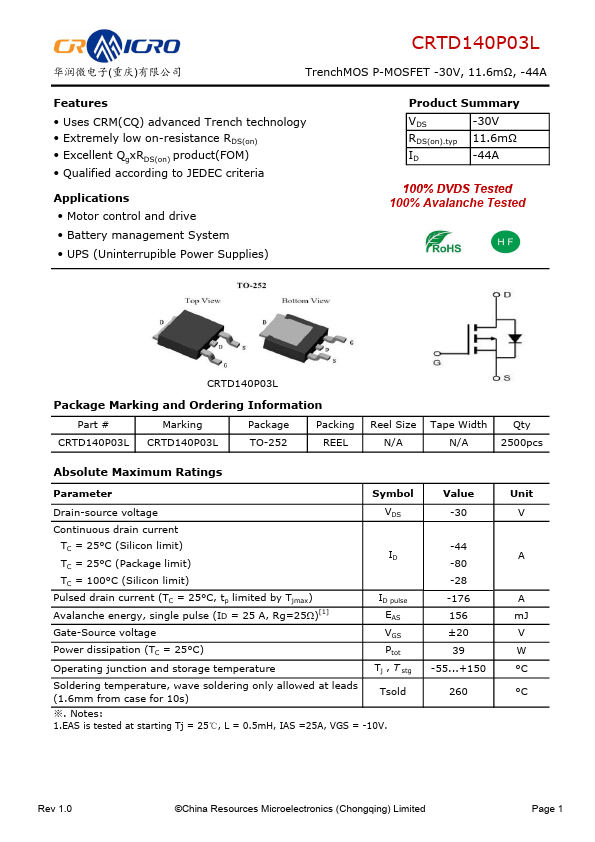

CRTD140P03L
CRTD140P03L is Trench P-MOSFET manufactured by CR Micro.
华润微电子(重庆)有限公司
TrenchMOS P-MOSFET -30V, 11.6mΩ, -44A
Features
- Uses CRM(CQ) advanced Trench technology
- Extremely low on-resistance RDS(on)
- Excellent QgxRDS(on) product(FOM)
- Qualified according to JEDEC criteria
Applications
- Motor control and drive
- Battery management System
- UPS (Uninterrupible Power Supplies)
Product Summary
VDS RDS(on).typ ID
-30V 11.6mΩ -44A
100% DVDS Tested 100% Avalanche Tested
Package Marking and Ordering Information
Part # CRTD140P03L
Marking CRTD140P03L
Package TO-252
Packing REEL
Reel Size N/A
Tape Width N/A
Qty...
