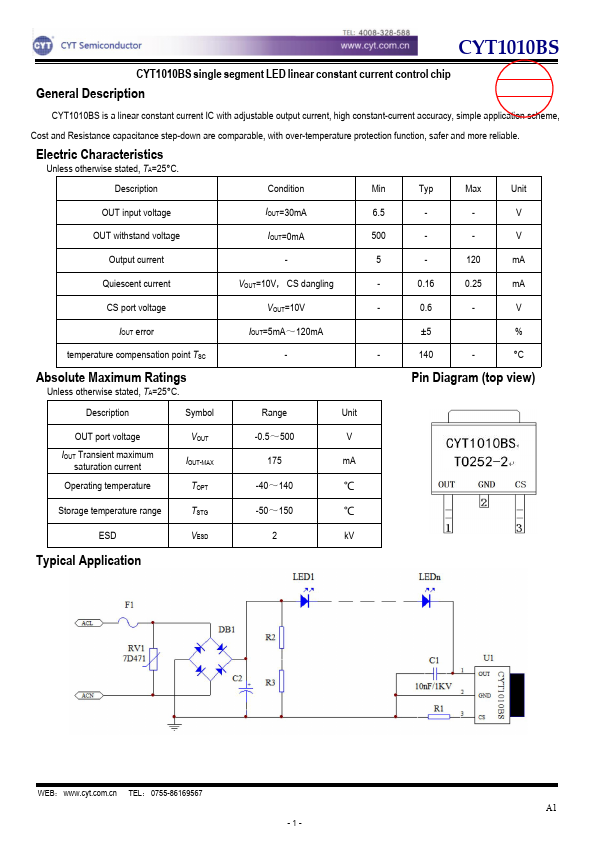

CYT1010BS
CYT1010BS is single segment LED linear constant current control chip manufactured by CYT.
CYT1010BS single segment LED linear constant current control chip
General Description
CYT1010BS is a linear constant current IC with adjustable output current, high constant-current accuracy, simple application scheme,
Cost and Resistance capacitance step-down are parable, with over-temperature protection function, safer and more reliable.
Electric Characteristics
Unless otherwise stated, TA=25°C.
Description
Condition
Min
Typ
Max
Unit
OUT input voltage
IOUT=30m A
- -
OUT withstand voltage
IOUT=0m A
- -
Output current
- 5
- 120 m A
Quiescent current
VOUT=10V，CS dangling
- 0.16
0.25 m A
CS port voltage
VOUT=10V
- 0.6
- V
IOUT...
