CYT6167
CYT6167 is 400mA CMOS LDO Regulator manufactured by CYT.

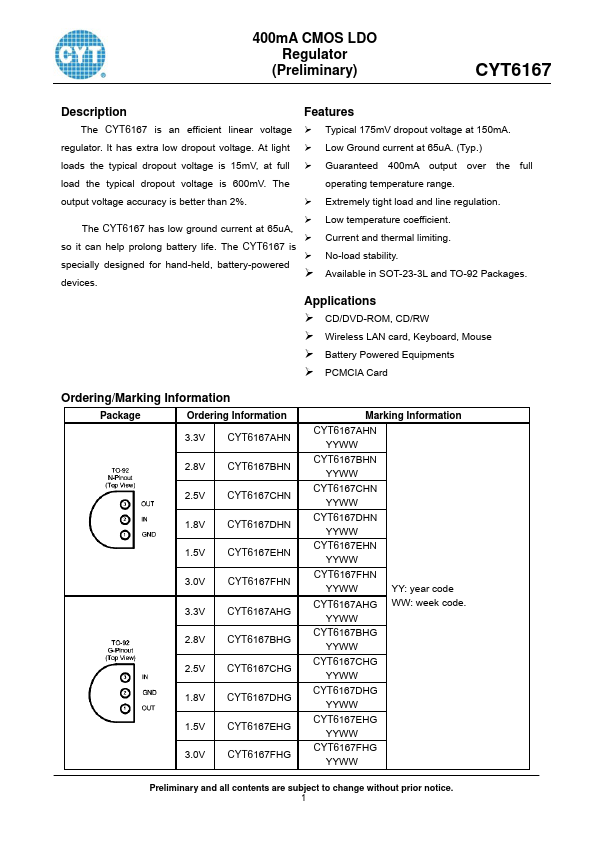

400m A CMOS LDO Regulator
(Preliminary)
Description
Features
The CYT6167 is an efficient linear voltage ¾ Typical 175m V dropout voltage at 150m A. regulator. It has extra low dropout voltage. At light ¾ Low Ground current at 65u A. (Typ.) loads the typical dropout voltage is 15m V, at full ¾ Guaranteed 400m A output over the full load the typical dropout voltage is 600m V. The operating temperature range. output voltage accuracy is better than 2%.
¾ Extremely tight load and line regulation.
¾ The CYT6167 has low ground current at 65u A,
¾ so it can help prolong battery life. The CYT6167 is
¾ specially designed for hand-held, battery-powered ¾ devices.
Low temperature coefficient. Current and thermal limiting. No-load stability. Available in SOT-23-3L and TO-92 Packages.
Applications ¾ CD/DVD-ROM, CD/RW ¾ Wireless LAN card, Keyboard, Mouse ¾ Battery Powered Equipments ¾ PCMCIA Card

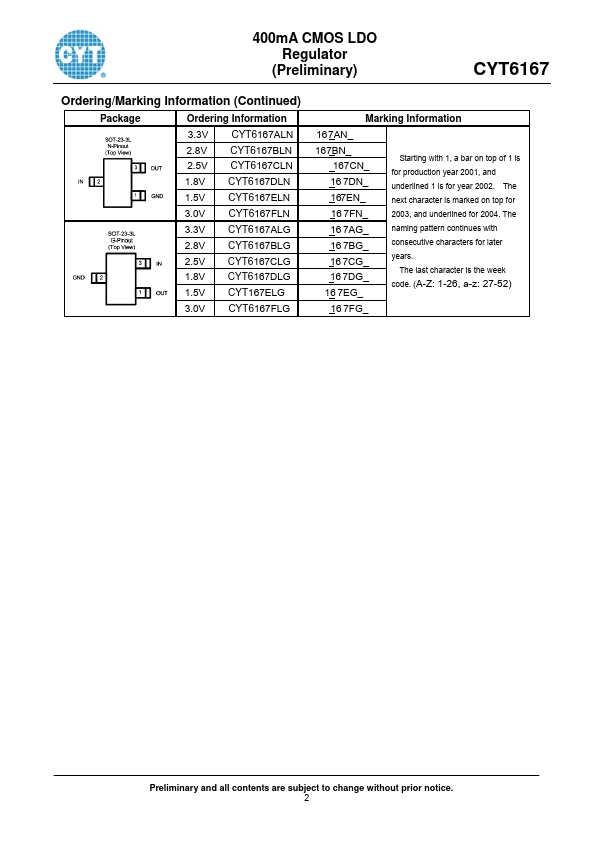

Ordering/Marking Information
Package
Ordering Information
3.3V CYT6167AHN
2.8V CYT6167BHN
2.5V CYT6167CHN
1.8V CYT6167DHN
1.5V CYT6167EHN
3.0V CYT6167FHN
3.3V CYT6167AHG
2.8V CYT6167BHG
2.5V CYT6167CHG
1.8V CYT6167DHG
1.5V CYT6167EHG
3.0V CYT6167FHG
Marking Information
CYT6167AHN YYWW
CYT6167BHN YYWW
CYT6167CHN...
