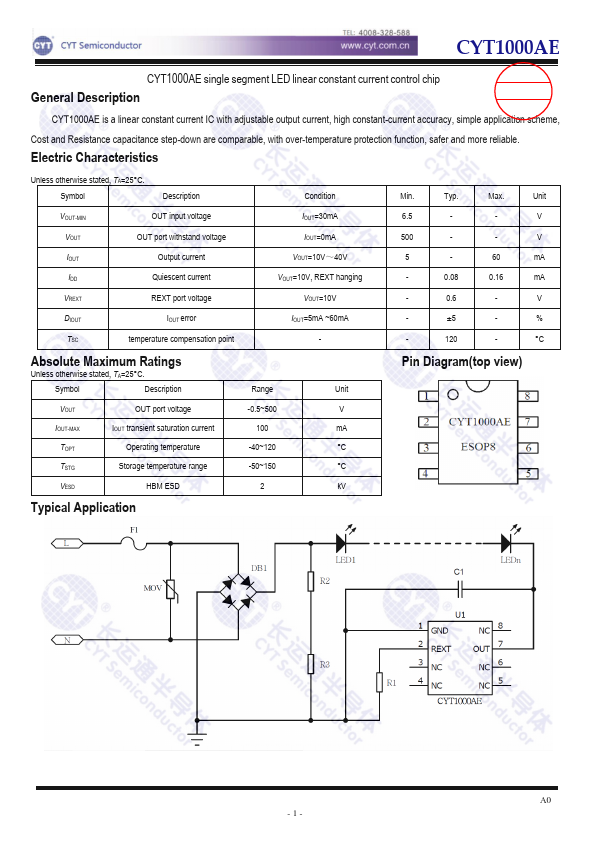

Datasheet Summary
CYT1000AE single segment LED linear constant current control chip
General Description
CYT1000AE is a linear constant current IC with adjustable output current, high constant-current accuracy, simple application scheme, Cost and Resistance capacitance step-down are parable, with over-temperature protection function, safer and more reliable.
Electric Characteristics
Unless otherwise stated, TA=25° C. Symbol
Description
Condition
Min.
Typ.
Max.
Unit
VOUT-MIN VOUT IOUT IDD VREXT
OUT input voltage OUT port withstand voltage
Output current Quiescent current REXT port voltage
IOUT=30mA IOUT=0mA VOUT=10V～40V VOUT=10V, REXT hanging VOUT=10V
- -
-...
