CYT1000AG datasheet by CYT.
| Part number | CYT1000AG |
|---|---|
| Datasheet | CYT1000AG-CYT.pdf |
| File Size | 1.65 MB |
| Manufacturer | CYT |
| Description | Dual-channel linear constant current LED control chip |
|
|

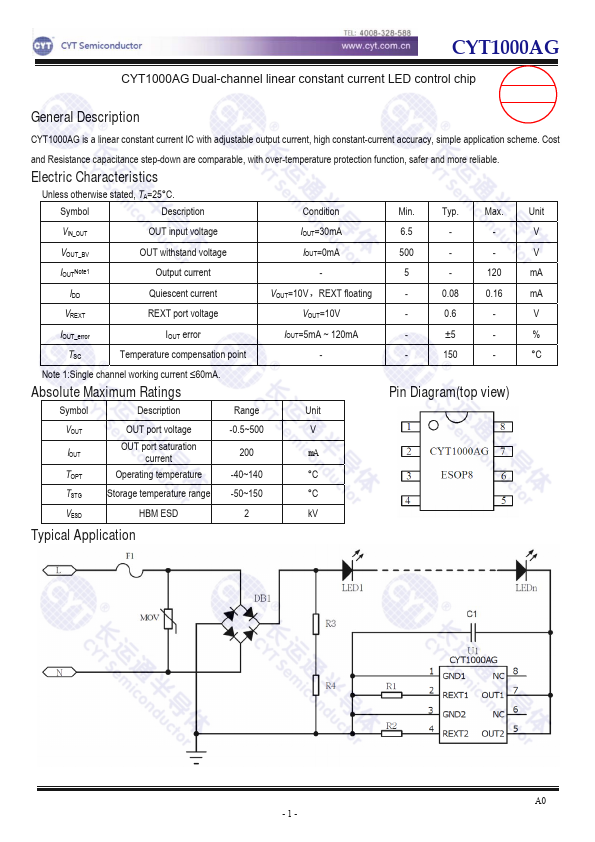

CYT1000AG is a linear constant current IC with adjustable output current, high constant-current accuracy, simple application scheme. Cost and Resistance capacitance step-down are parable, with over-temperature protection function, safer and more reliable. Electric Characteristics Unless otherwise stated, TA=25°C.
