CYT1000AT
CYT1000AT is single segment LED linear constant current control chip manufactured by CYT.

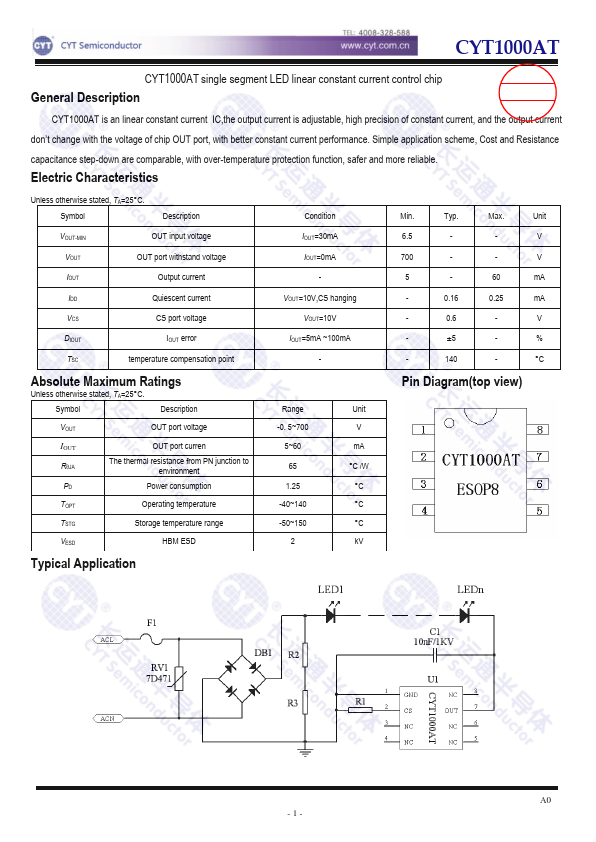

CYT1000AT single segment LED linear constant current control chip
General Description
CYT1000AT is an linear constant current IC,the output current is adjustable, high precision of constant current, and the output current don’t change with the voltage of chip OUT port, with better constant current performance. Simple application scheme, Cost and Resistance capacitance step-down are parable, with over-temperature protection function, safer and more reliable.
Electric Characteristics
Unless otherwise stated, TA=25° C. Symbol
Description
Condition
Min.
Typ.
Max.
Unit
VOUT-MIN
OUT input voltage
IOUT=30m A
- -
VOUT
OUT port withstand voltage
IOUT
Output current
Quiescent current
CS port voltage
DIOUT
IOUT error
TSC temperature pensation...
