BAS56 datasheet by Central Semiconductor.
| Part number | BAS56 |
|---|---|
| Datasheet | BAS56_CentralSemiconductorCorp.pdf |
| File Size | 452.36 KB |
| Manufacturer | Central Semiconductor |
| Description | DUAL HIGH CURRENT SWITCHING DIODE |
|
|

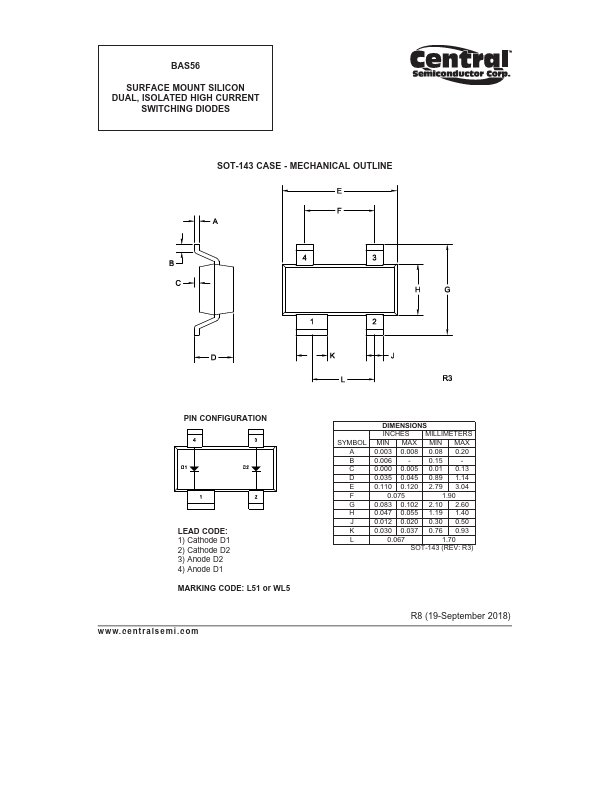

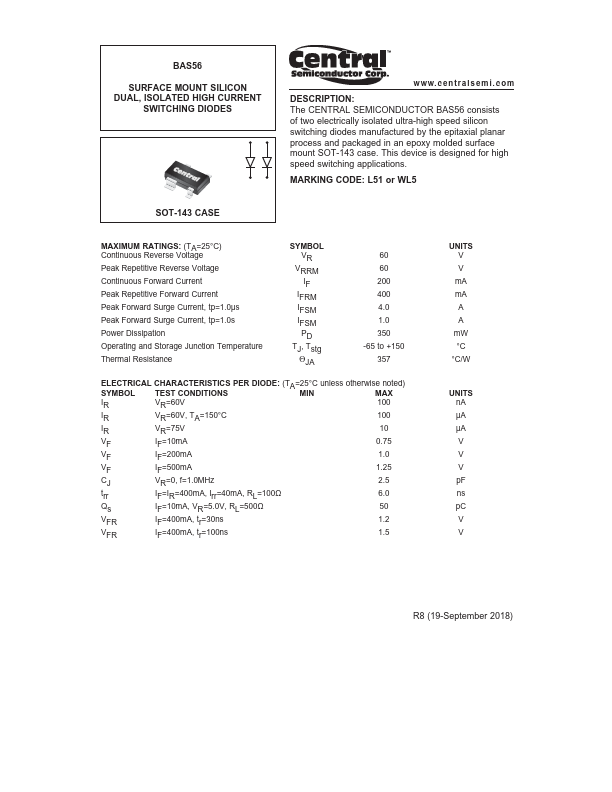

The CENTRAL SEMICONDUCTOR BAS56 consists of two electrically isolated ultra-high speed silicon switching diodes manufactured by the epitaxial planar process and packaged in an epoxy molded surface mount SOT-143 case. This device is designed for high speed switching applications. L51 or WL5 SOT-143 CASE MAXIMUM RATINGS:.
