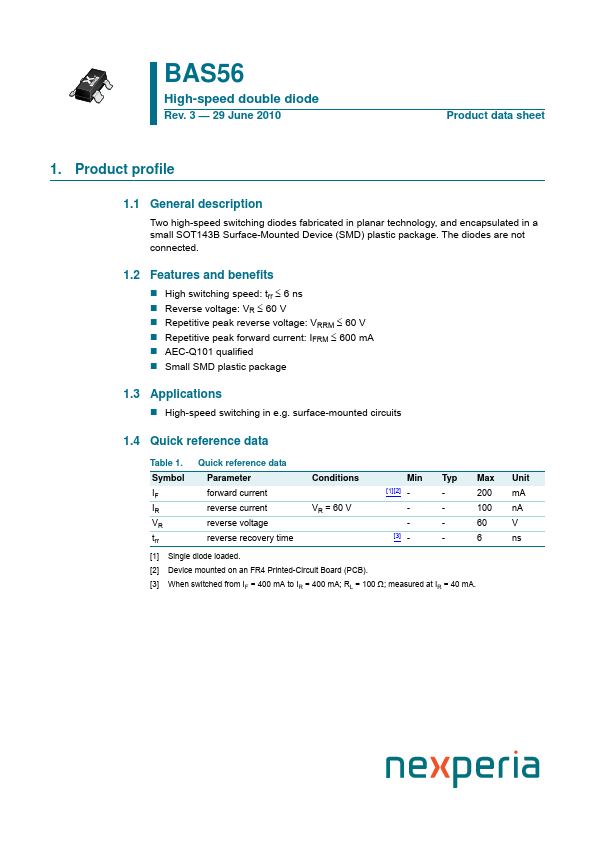

BAS56 Datasheet PDF

FEATURES AND BENEFITS

„ High switching speed: trr ≤ 6 ns „ Reverse voltage: VR ≤ 60 V „ Repetitive peak reverse voltage: VRRM ≤ 60 V „ Repetitive peak forward current: IFRM ≤ 600 mA „ AEC-Q101 qualified „ Small SMD plastic package 1.3

APPLICATIONS

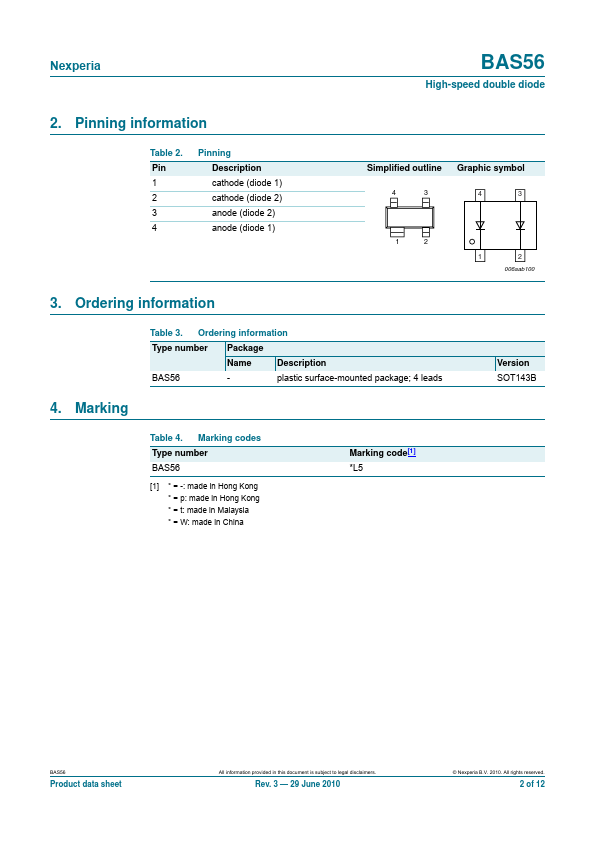

„ High-speed switching in e.g. surface-mounted circuits 1.4 Quick reference data Table 1. Quick reference data Symbol IF IR VR trr Parameter forward current reverse current reverse voltage reverse recovery time Conditions VR = 60 V Min Typ Max [1][2] - - 200 - - 100 - - 60 [3] - - 6 [1] Single diode loaded. [2] Device mounted on an FR4 Printed-Circuit Board (PCB). [3] When switched from IF = 400 mA to IR = 400 mA; RL = 100 Ω; measured at IR = 40 mA. Unit mA nA V ns Nexperia BAS56 High-speed double diode 2. Pinning information Table 2. Pin 1 2 3 4 Pinning

DESCRIPTION

cathode (diode 1) cathode (diode 2) anode (diode 2) anode (diode 1) Simplified outline Graphic symbol 4 3 4 3 1 2 1 2 006aab100 3. Ordering information Table 3. Ordering information Type number Package Name

DESCRIPTION

BAS56 - plastic surface-mounted package; 4 leads 4.
