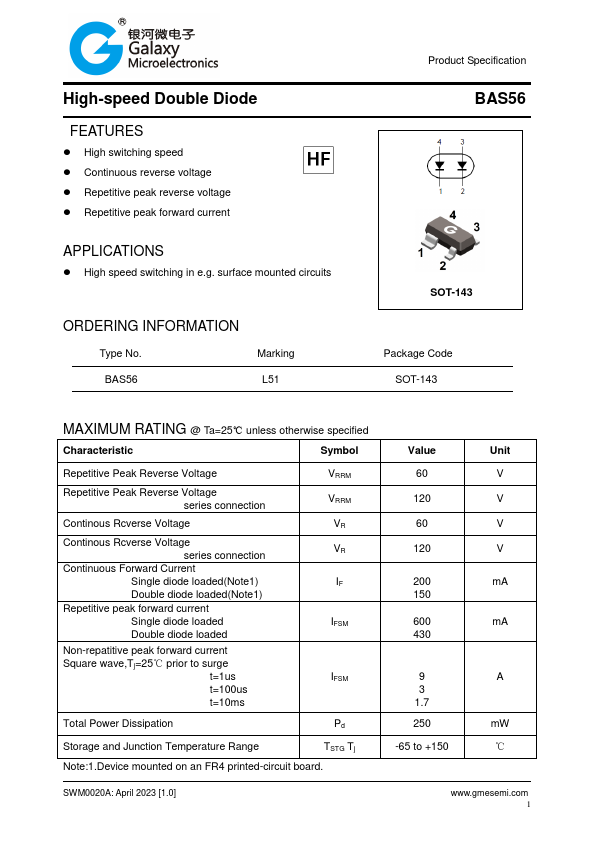

Galaxy Century Microelectronics BAS56
High-speed Double Diode
| Part No. | BAS56 |
|---|---|
| Datasheet | BAS56 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | High-speed Double Diode |
| Buy | Stock & Price |
FEATURES
● High switching speed● Continuous reverse voltage
● Repetitive peak reverse voltage
● Repetitive peak forward current
APPLICATIONS
● High speed switching in e.g. surface mounted circuits ORDERING INFORMATION Type No. Marking BAS56 L51 Product Specification BAS56 SOT-143 Package Code SOT-143 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Symbol Repetitive Peak Reverse Voltage Repetitive Peak Reverse Voltage series connection Continous Rcverse Voltage Continous Rcverse Voltage series connection Continuous Forward Current Single diode loaded(Note1) Double diode loaded(Note1) Repetitive peak forward current Single diode loaded Double diode loaded Non-repatitive peak forward current Square wave,Tj=25℃ prior to surge t=1us t=100us t=10ms VRRM VRRM VR VR IF IFSM IFSM Total Power Dissipation Pd Storage and Junction Temperature Range TSTG Tj Note:1.Device mounted on an FR4 printed-circuit board. SWM0020A: April 2023 [1.0] Value Unit 60 V 120 V 60 V 120 V 200 mA 150...
