Datasheet Summary
2N5457 2N5458 2N5459
SILICON N-CHANNEL JFETS w w w. c e n t r a l s e m i . c o m

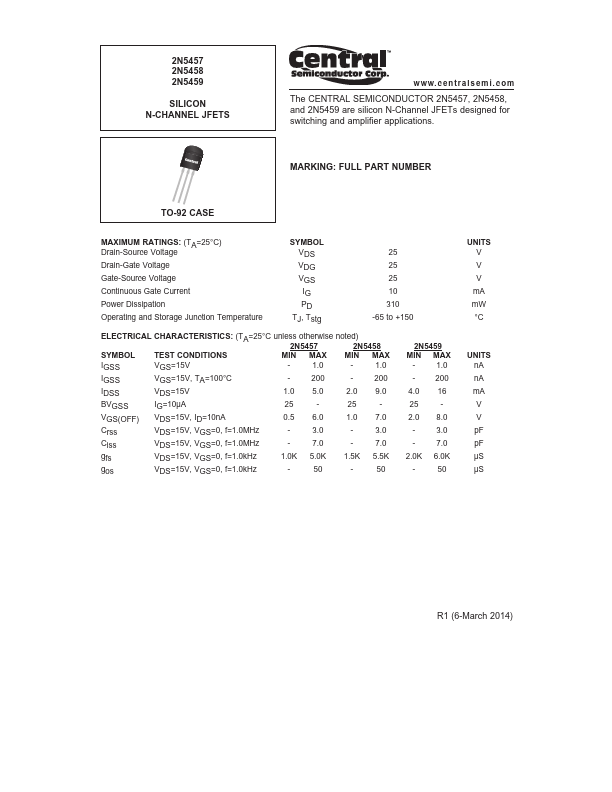

The CENTRAL SEMICONDUCTOR 2N5457, 2N5458, and 2N5459 are silicon N-Channel JFETs designed for switching and amplifier applications.
MARKING: FULL PART NUMBER
TO-92 CASE
MAXIMUM RATINGS: (TA=25°C) Drain-Source Voltage Drain-Gate Voltage Gate-Source Voltage Continuous Gate Current Power Dissipation Operating and Storage Junction Temperature
SYMBOL VDS VDG VGS IG PD
TJ, Tstg
25 25 25 10 310 -65 to +150
ELECTRICAL CHARACTERISTICS: (TA=25°C unless otherwise noted)
2N5458
SYMBOL TEST CONDITIONS
MIN MAX MIN MAX
IGSS
VGS=15V
- 1.0
- 1.0
IGSS
VGS=15V, TA=100°C
- 200
- 200
IDSS
VDS=15V
1....
