This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | 2N5458 |
|---|---|
| Datasheet | 2N5458 2N5457 Datasheet (PDF) |
| File Size | 390.90 KB |
| Manufacturer | Central Semiconductor |
| Description | SILICON N-CHANNEL JFETS |
|
|

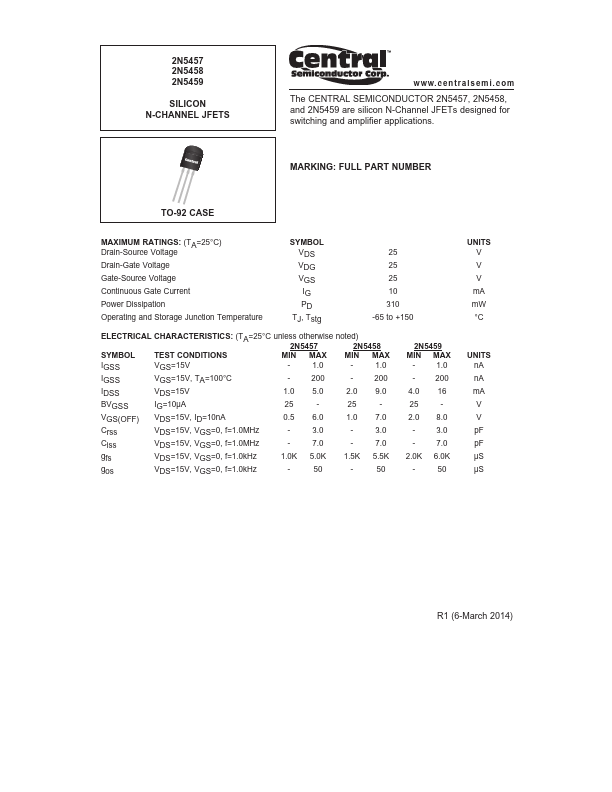

2N5457 2N5458 2N5459 SILICON N-CHANNEL JFETS w w w. c o m The CENTRAL SEMICONDUCTOR 2N5457, 2N5458, and 2N5459 are silicon N-Channel JFETs designed for switching and amplifier applications. FULL PART NUMBER TO-92 CASE MAXIMUM RATINGS:.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
2N5458 | N-Channel Amplifier | Fairchild Semiconductor |
 |
2N5458 | N-Channel JFET | Calogic LLC |
 |
2N5458 | GENERAL PURPOSE JFET | Motorola |
 |
2N5458 | N-Channel MOSFET | ON Semiconductor |
|
2N5458G | N-Channel MOSFET | ON Semiconductor |
