This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | 2N5459 |
|---|---|
| Datasheet | 2N5459 2N5457 Datasheet (PDF) |
| File Size | 390.90 KB |
| Manufacturer | Central Semiconductor |
| Description | SILICON N-CHANNEL JFETS |
|
|

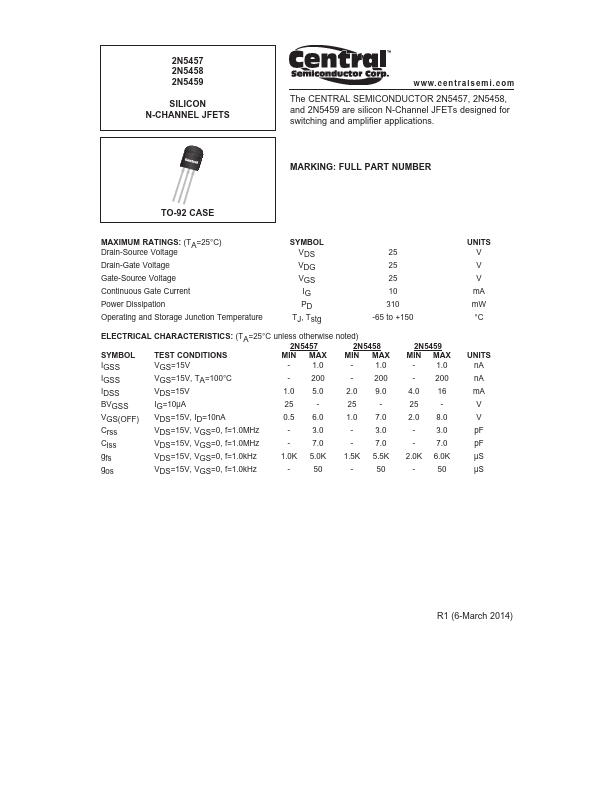

2N5457 2N5458 2N5459 SILICON N-CHANNEL JFETS w w w. c o m The CENTRAL SEMICONDUCTOR 2N5457, 2N5458, and 2N5459 are silicon N-Channel JFETs designed for switching and amplifier applications. FULL PART NUMBER TO-92 CASE MAXIMUM RATINGS:.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
2N5459 | N-Channel General Purpose Amplifier | Fairchild Semiconductor |
 |
2N5459 | N-Channel JFET | Calogic LLC |
 |
2N5459 | GENERAL PURPOSE JFET | Motorola |
See all Central Semiconductor datasheets
| Part Number | Description |
|---|---|
| 2N5457 | SILICON N-CHANNEL JFETS |
| 2N5458 | SILICON N-CHANNEL JFETS |
| 2N5400 | SILICON PNP TRANSISTOR |
| 2N5401 | SILICON PNP TRANSISTOR |
| 2N5415 | SILICON PNP TRANSISTORS |
| 2N5416 | SILICON PNP TRANSISTORS |
| 2N5460 | SILICON P-CHANNEL JFETS |
| 2N5461 | SILICON P-CHANNEL JFETS |
| 2N5462 | SILICON P-CHANNEL JFETS |
| 2N5484 | SILICON N-CHANNEL JFET |
