BC846BW datasheet by Central Semiconductor.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BC846BW |
|---|---|
| Datasheet | BC846BW BC846W Datasheet (PDF) |
| File Size | 274.44 KB |
| Manufacturer | Central Semiconductor |
| Description | SURFACE MOUNT NPN SILICON TRANSISTOR |
|
|

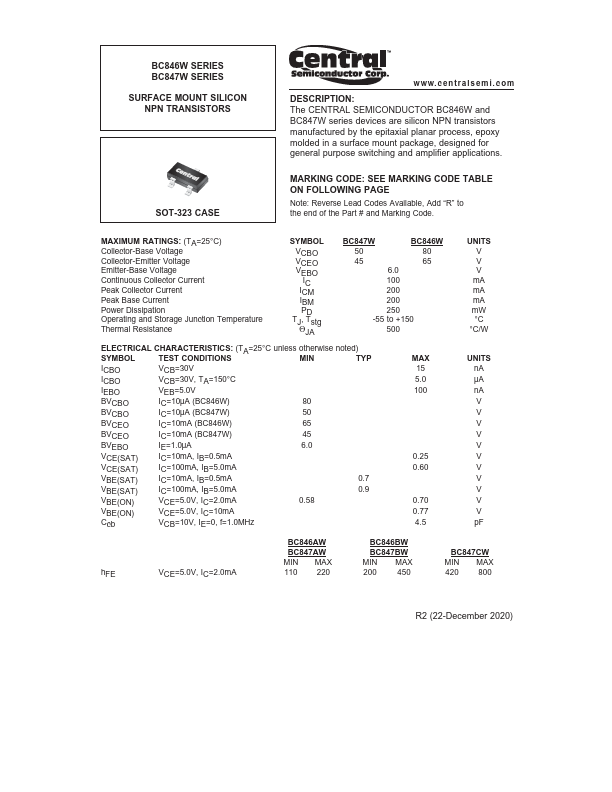

The CENTRAL SEMICONDUCTOR BC846W and BC847W series devices are silicon NPN transistors manufactured by the epitaxial planar process, epoxy molded in a surface mount package, designed for general purpose switching and amplifier applications. SEE MARKING CODE TABLE ON FOLLOWING PAGE Note: Reverse Lead Codes Available, Add “R” to the end of the Part # and Marking Code.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
BC846BW | NPN Transistor | SeCoS |
 |
BC846BW | NPN Transistor | GOOD-ARK |
 |
BC846BW | NPN SMALL SIGNAL TRANSISTOR | Diodes |
 |
BC846BW | SMD General Purpose NPN Transistors | Diotec |
 |
BC846BW | NPN Small Signal Surface Mount Transistor | GME |
