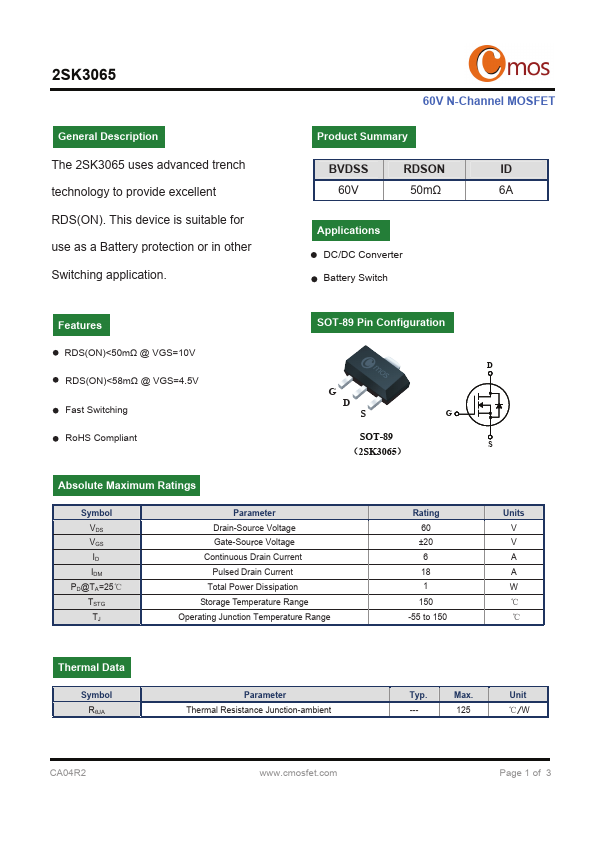

2SK3065
2SK3065 is 60V N-Channel MOSFET manufactured by Cmos.
Description
The 2SK3065 uses advanced trench technology to provide excellent RDS(ON). This device is suitable for use as a Battery protection or in other Switching application.
60V N-Channel MOSFET
Product Summary
BVDSS
RDSON
60V
50mΩ
6A
Applications DC/DC Converter Battery Switch
Features
RDS(ON)<50mΩ @ VGS=10V RDS(ON)<58mΩ @ VGS=4.5V Fast Switching Ro HS pliant
SOT-89 Pin Configuration
SOT-89 （2SK3065）
- - ▲
- -
Absolute Maximum Ratings
Symbol VDS VGS ID IDM
PD@TA=25℃ TSTG TJ
Parameter Drain-Source Voltage Gate-Sou ce Voltage Continuous Drain Current Pulsed Drain Current Total Power Dissipation Storage Temperature Range Operating Junction Temperature Range
Rating 60 ±20 6 18 1 150
-55 to 150
Units V V A A W ℃
℃
Thermal Data
Symbol RθJA
Parameter Thermal Resistance Junction-ambient
Typ. ---
Max. 125
Unit ℃/W
CA04R2
.cmosfet.
Page 1 of 3

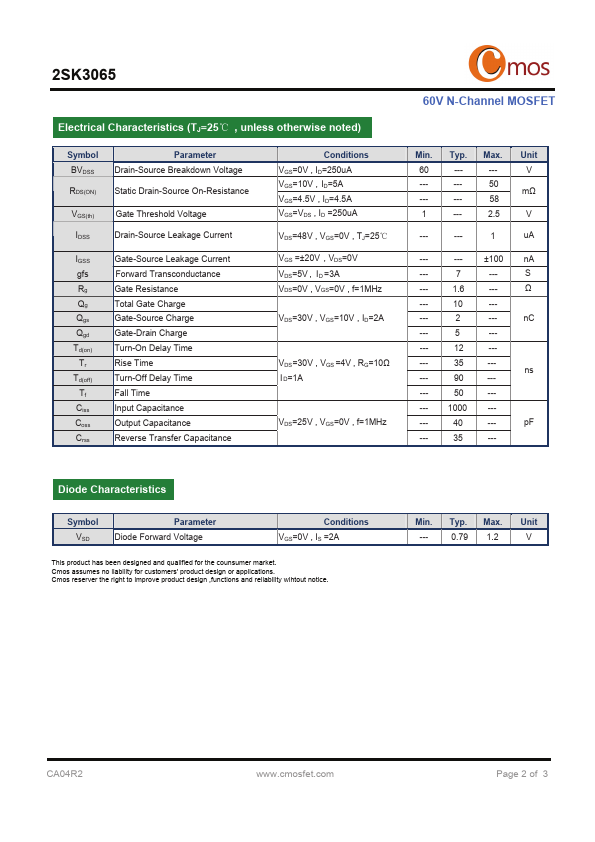

Electrical Characteristics (TJ=25℃ , unless otherwise noted)
Symbol...
