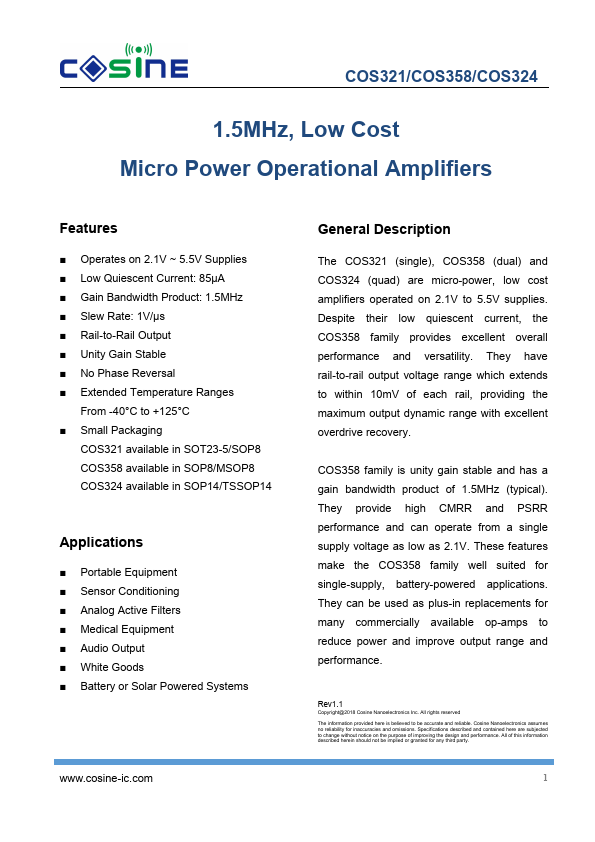

Cosine COS321
The COS321 (single), COS358 (dual) and COS324 (quad) are micro-power, low cost amplifiers operated on 2.1V to 5.5V supplies. They have rail-to-rail output voltage range which extends to within 10mV of each rail, providing the maximum output dynamic range with excellent overdrive recovery. They provide high CMRR and PSRR performance and can operate from a single supply voltage as low as 2.1V.| Part No. | COS321 |
|---|---|
| Datasheet | COS321 Download |
| Manufacturer | Cosine |
| Description | Low Cost Micro Power Operational Amplifiers |
| Buy | Stock & Price |
FEATURES
● Operates on 2.1V ~ 5.5V Supplies● Low Quiescent Current: 85μA
● Gain Bandwidth Product: 1.5MHz
● Slew Rate: 1V/µs
● Rail-to-Rail Output
● Unity Gain Stable
● No Phase Reversal
● Extended Temperature Ranges From -40°C to +125°C
● Small Packaging COS321 available in SOT23-5/SOP8 COS358 available in SOP8/MSOP8 COS324 available in SOP14/TSSOP14
APPLICATIONS
● Portable Equipment● Sensor Conditioning
● Analog Active Filters
● Medical Equipment
● Audio Output
● White Goods
● Battery or Solar Powered Systems
GENERAL DESCRIPTION
Despite their low quiescent current, the COS358 family provides excellent overall performance and versatility. COS358 family is unity gain stable and has a gain bandwidth product of 1.5MHz (typical). These features make the COS358 family well suited for single-supply, battery-powered applications. They can be used as plus-in replacements for many commercially available op-amps to reduce power and improve output range and performance. Rev1.1 Copyright@2018 Cosine Nanoelectronics Inc.
