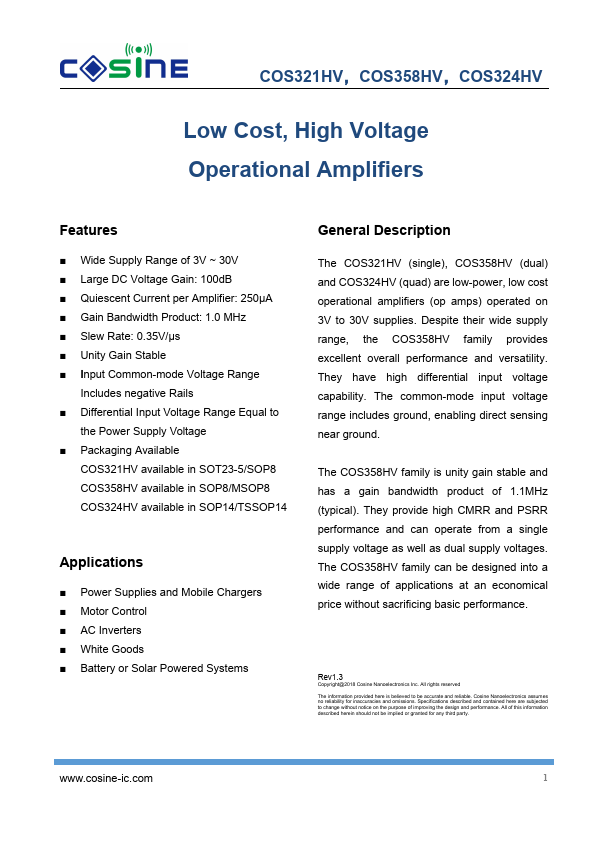

Datasheet Summary
COS321HV，COS358HV，COS324HV
Low Cost, High Voltage Operational Amplifiers
Features
- Wide Supply Range of 3V ~ 30V
- Large DC Voltage Gain: 100dB
- Quiescent Current per Amplifier: 250μA
- Gain Bandwidth Product: 1.0 MHz
- Slew Rate: 0.35V/µs
- Unity Gain Stable
- Input mon-mode Voltage Range
Includes negative Rails
- Differential Input Voltage Range Equal to the Power Supply Voltage
- Packaging Available
COS321HV available in SOT23-5/SOP8 COS358HV available in SOP8/MSOP8 COS324HV available in SOP14/TSSOP14
Applications
- Power Supplies and Mobile Chargers
- Motor Control
- AC Inverters
- White Goods
- Battery or Solar Powered Systems
General Description
The COS321HV (single), COS358HV...
