KAQY214 - SOLID STATE RELAY

Description

The KAQY214 series is robust, ideal for telecom and ground fault applications.

It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications.

It is constructed using a GaAlAs LED for actuation control and an integrated monolithic die for the switch output.

Features

  • s 1. Normally open, single pole single throw 2. Control 400V AC or DC voltage 3. Switch 130mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1 10. Agency Approvals：.
  • UL Approved (No. E108430): UL508.
  • C-UL Approved (No. E108430).
  • FIMKO Approved: EN62368-1, EN60601-1.
  • VDE Approved (No. 40053989): EN60747-5.

📥 Download Datasheet

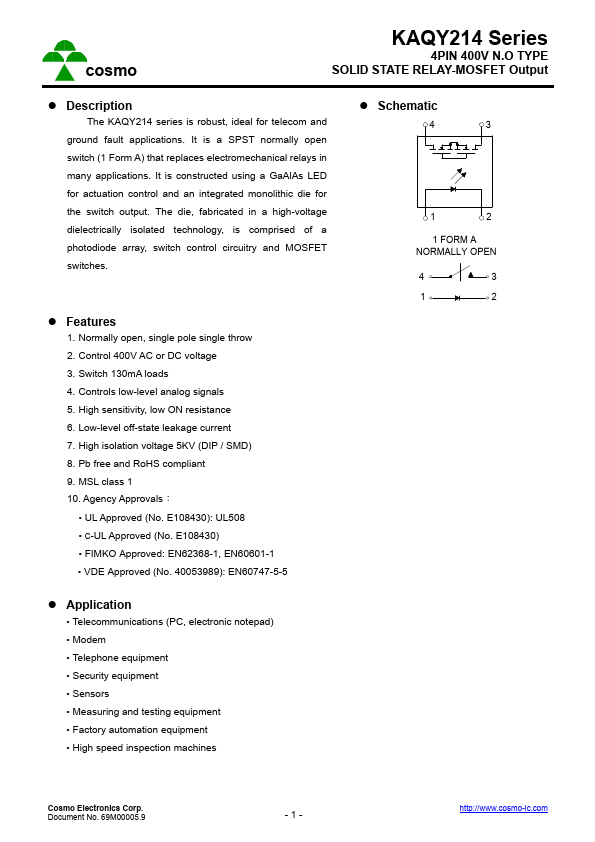

Datasheet preview – KAQY214

Datasheet Details

Part number KAQY214
Manufacturer Cosmo
File Size 325.85 KB
Description SOLID STATE RELAY
Datasheet download datasheet KAQY214 Datasheet

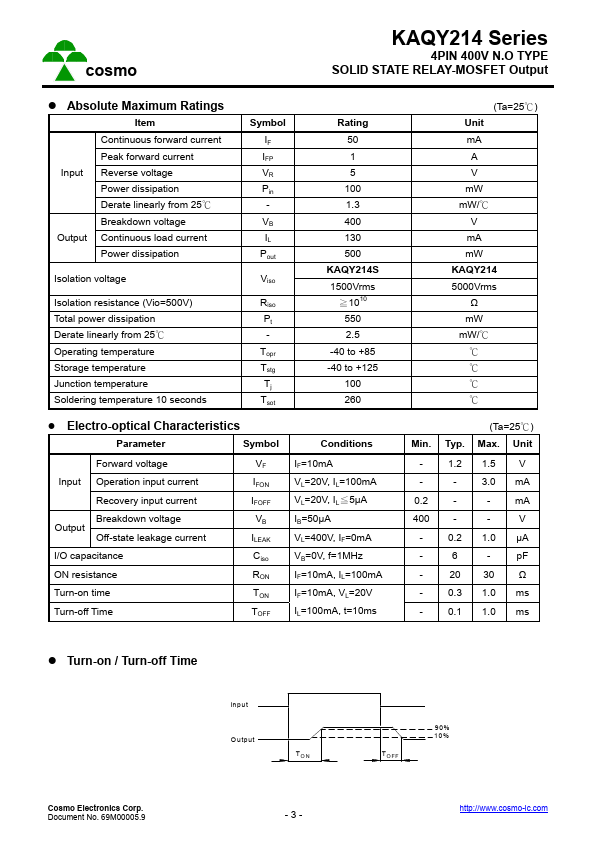

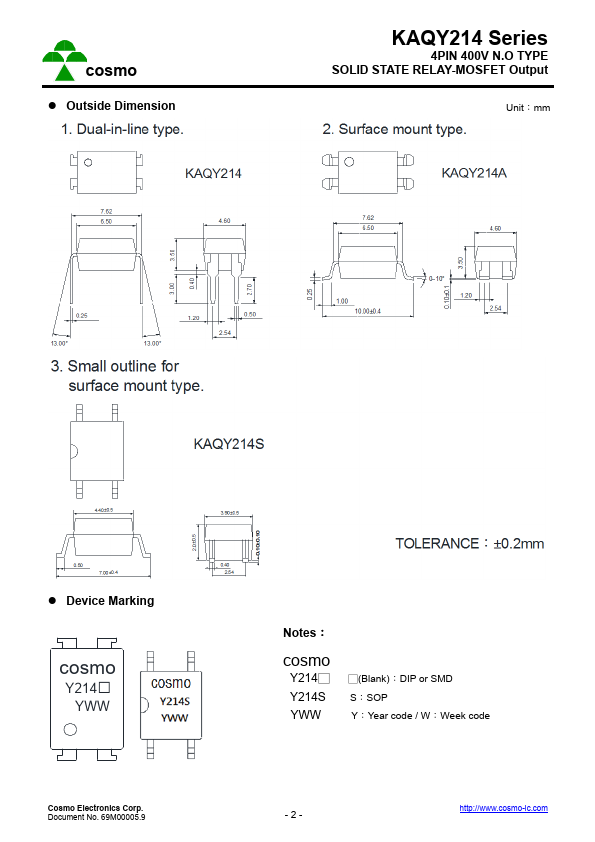

Additional preview pages of the KAQY214 datasheet.

📁 Similar Datasheet

  • KAQV216H - SOLID STATE RELAY (COSMO Electronics)
  • KAQV217 - Solid State Relay-MOSFET Output (COSMO Electronics)
  • KAQV217A - Solid State Relay-MOSFET Output (COSMO Electronics)
  • KAQV217S - Solid State Relay-MOSFET Output (COSMO Electronics)
Other Datasheets by Cosmo

Full PDF Text Transcription

Click to expand full text
cosmo KAQY214 Series 4PIN 400V N.O TYPE SOLID STATE RELAY-MOSFET Output  Description The KAQY214 series is robust, ideal for telecom and ground fault applications. It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAlAs LED for actuation control and an integrated monolithic die for the switch output. The die, fabricated in a high-voltage dielectrically isolated technology, is comprised of a photodiode array, switch control circuitry and MOSFET switches.  Features 1. Normally open, single pole single throw 2. Control 400V AC or DC voltage 3. Switch 130mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7.
