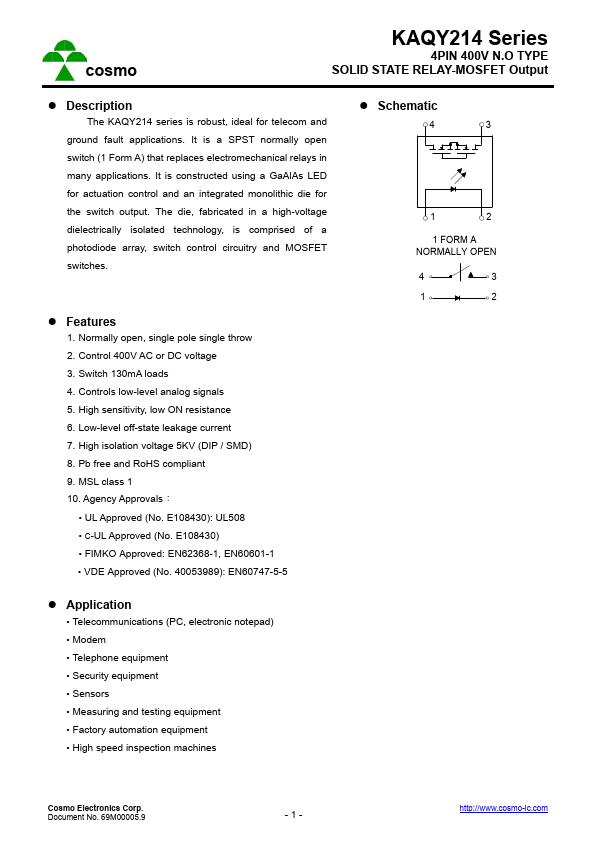

Description The KAQY214 series is robust, ideal for tele and ground fault applications. It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a Ga Al As LED for actuation control and an integrated monolithic die for the switch output. The die, fabricated in a high-voltage dielectrically isolated technology, is prised of a photodiode array, switch control circuitry and MOSFET switches. - Features 1. Normally open, single pole single throw 2. Control 400V AC or DC voltage 3. Switch 130m A loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and Ro HS pliant 9. MSL class 1 10. Agency Approvals： - UL Approved (No. E108430): UL508 - C-UL Approved (No. E108430) - FIMKO Approved: EN62368-1, EN60601-1 - VDE Approved (No. 40053989): EN60747-5-5 - Schematic 1 FORM A NORMALLY OPEN - Application - Telemunications (PC, electronic notepad) - Modem - Telephone equipment - Security equipment - Sensors - Measuring and testing equipment - Factory automation equipment - High speed inspection machines Cosmo Electronics Corp. Document No. 69M00005.9 -1- http://.cosmo-ic. cosmo - Outside Dimension KAQY214 Series 4PIN 400V N.O TYPE SOLID STATE RELAY-MOSFET Output Unit：mm - Device Marking cosmo - Y214 Cosmo Electronics Corp. Document No. 69M00005.9 Notes： cosmo Y214- Y214S YWW - (Blank)：DIP or SMD S：SOP Y：Year code / W：Week...
